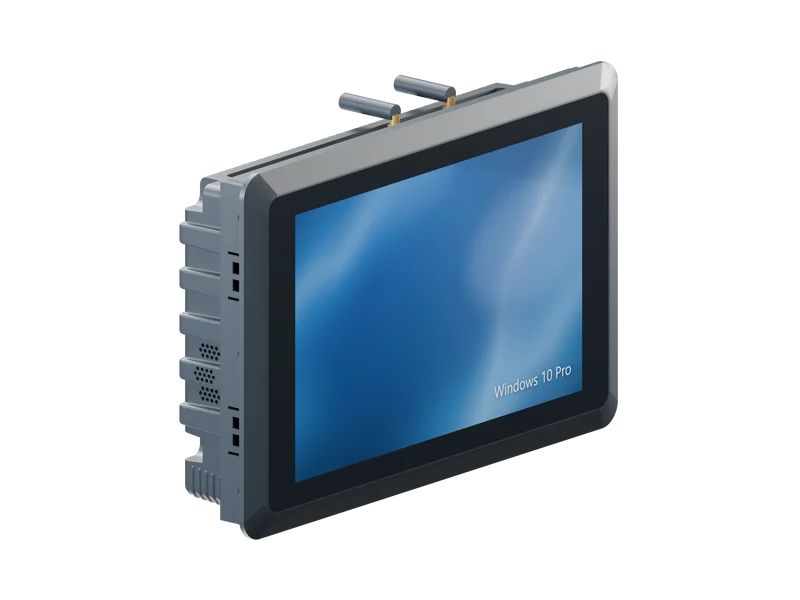

10.1-inch Q-Series i7-6500U Panel PC - 4GB RAM, 128GB SSD, Windows 10 Pro
Descrizione
10.1" Q-Series Panel PC - i7-6500U, 4GB / 128GB SSD / Windows 10 Pro
Intel Core i7-6500U, 4GB RAM and 128GB SSD define this 10.1-inch Q-Series build. 1280 × 800 / 16:10 display; supplied with Windows 10 Pro.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i7-6500U platform
Documented interfaces: 2 × LAN / 4 × USB / 2 × RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.1-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.1-inch Q-Series panel PC with Windows 10 Pro
A 10.1 inch HMI panel PC with Intel Core i7 processors for CNC operator terminals, food processing supervisory stations and building automation front ends, combining a 1280 x 800 capacitive touch display, IP65 front, fanless aluminum enclosure and 12-36V DC power input. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 10.1-inch TFT LCD Resolution 1280 × 800 / 16:10 Processor Intel Core i7-6500U Memory 4GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m² Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 283.7 × 186.2 × 60 mm Datasheet opening 271.8 x 174.3 mm Ethernet 2 × LAN USB 2 × USB 2.0 + 2 × USB 3.0 Audio 1 × Audio Out Serial 2 × RS232 Video output HDMI + VGA
