Fornitore: Industrial Monitor Direct

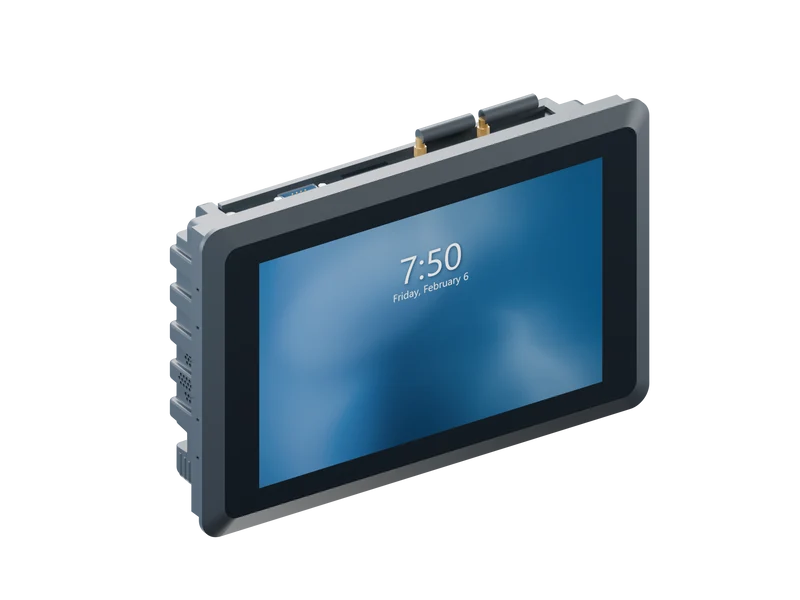

10.1-inch Q-Series J4125 Panel PC - 4GB RAM, 256GB SSD, Windows 10 Pro
Descrizione
10.1" Q-Series Panel PC - J4125, 4GB / 256GB SSD / Windows 10 Pro
Intel Celeron J4125, 4GB RAM and 256GB SSD define this 10.1-inch Q-Series build. 1280 × 800 / 16:10 display; supplied with Windows 10 Pro.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the J4125 platform

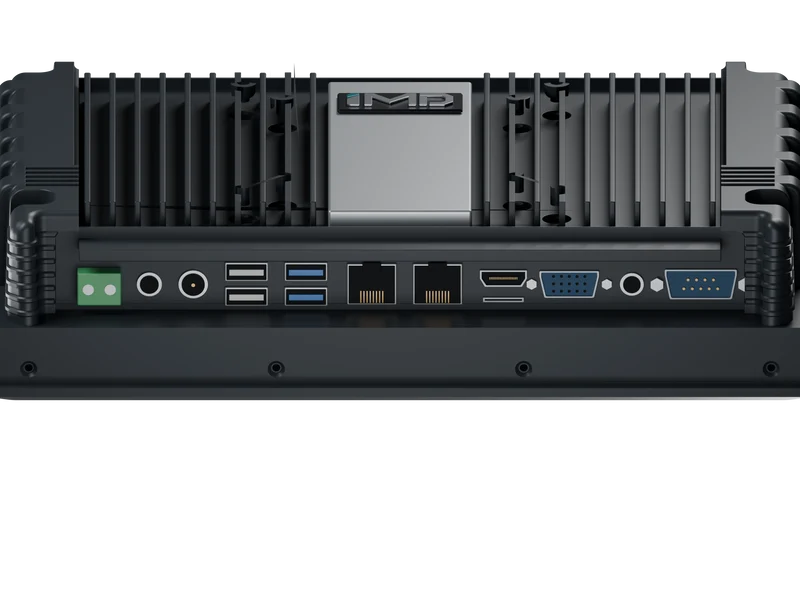

Documented interfaces: 2 × LAN / 4 × USB / 2 × RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.1-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.1-inch Q-Series panel PC with Windows 10 Pro
Build a compact interface for controllers, peripherals and production equipment. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 10.1-inch TFT LCD Resolution 1280 × 800 / 16:10 Processor Intel Celeron J4125 Memory 4GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m² Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 283.7 × 186.2 × 60 mm Datasheet opening 271.8 x 174.3 mm Ethernet 2 × LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 × RS232 Video output HDMI + VGA
