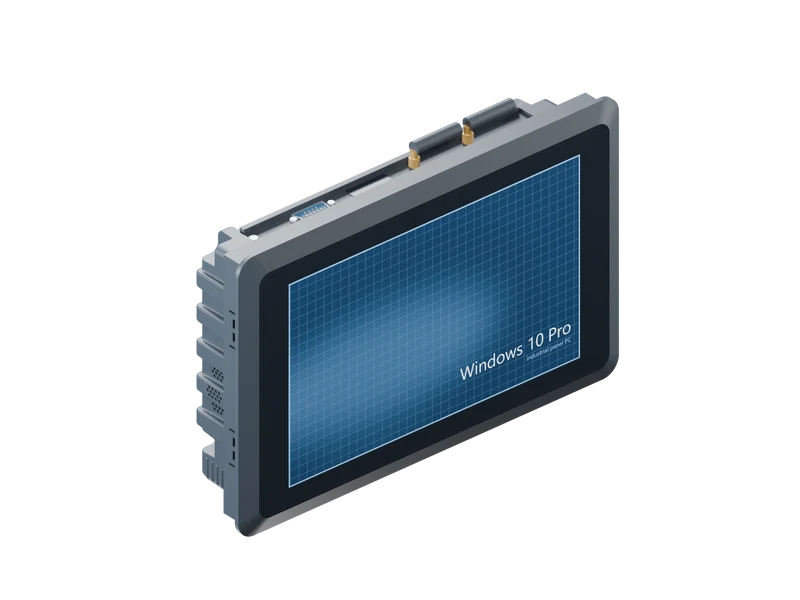

10.1-inch Q-Series Panel PC with 512GB SSD - J4125, 8GB RAM, Windows 10 Pro

10.1" Q-Series Panel PC - J4125, 8GB / 512GB SSD / Windows 10 Pro

Select the 512GB SSD build with Intel Celeron J4125 and 8GB RAM for this 10.1-inch Q-Series panel computer. 1280 × 800 / 16:10 display; supplied with Windows 10 Pro.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the J4125 platform

Documented interfaces: 2 × LAN / 4 × USB / 2 × RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 10.1-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

10.1-inch Q-Series panel PC with Windows 10 Pro

Build a compact interface for controllers, peripherals and production equipment. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 10.1-inch TFT LCD Resolution 1280 × 800 / 16:10 Processor Intel Celeron J4125 Memory 8GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m² Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 283.7 × 186.2 × 60 mm Datasheet opening 271.8 x 174.3 mm Ethernet 2 × LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 × RS232 Video output HDMI + VGA
