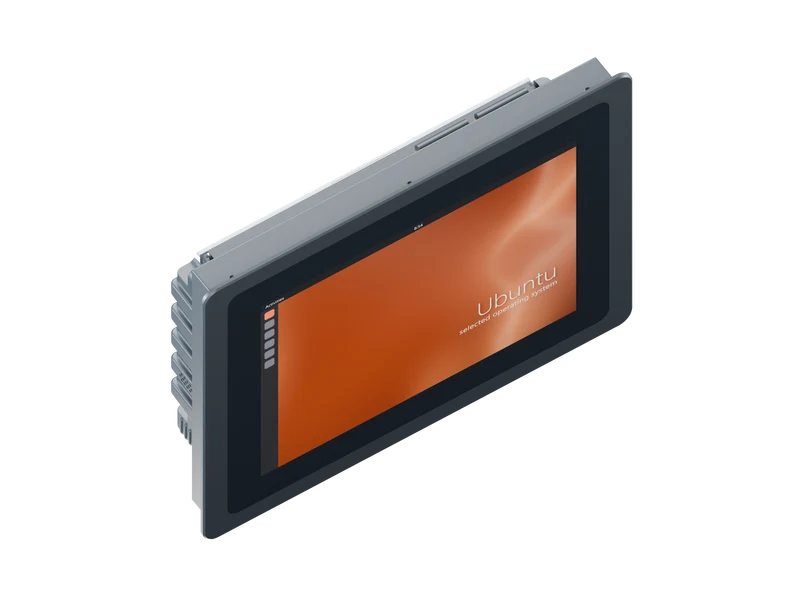

10.4-inch 2nd Gen i3-10110U Panel PC - 8GB RAM, 256GB SSD, Ubuntu

10.4" 2nd Gen Panel PC - i3-10110U, 8GB / 256GB SSD / Ubuntu

Intel Core i3-10110U, 8GB RAM and 256GB SSD define this 10.4-inch 2nd Gen build. 1024 x 768 display; supplied with Ubuntu.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Allocate the 256GB SSD

Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.

Integrate the i3-10110U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 10.4-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

10.4-inch 2nd Gen panel PC with Ubuntu

A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i3-10110U Memory 8GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 288 x 231 x 59.5 mm Datasheet opening 273 x 216 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
