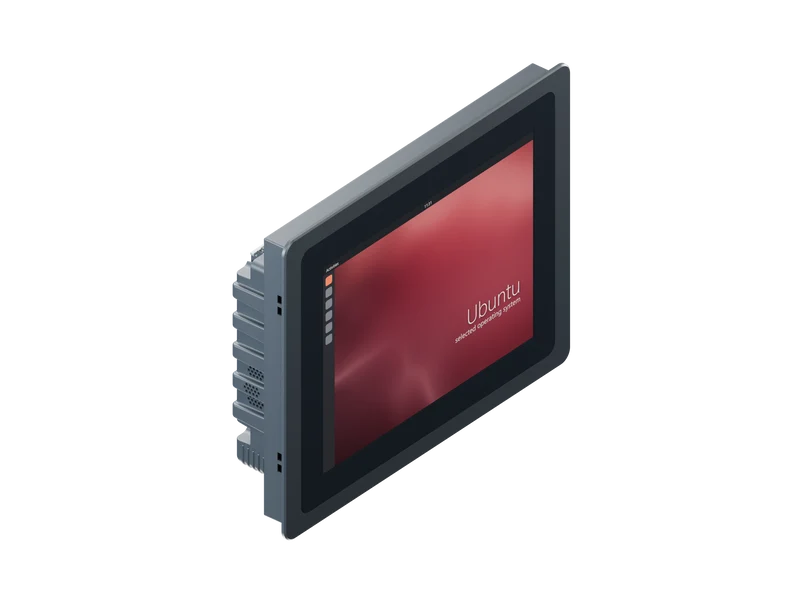

10.4-inch 2nd Gen i5-8265U Panel PC - 4GB RAM, 128GB SSD, Ubuntu

10.4" 2nd Gen Panel PC - i5-8265U, 4GB / 128GB SSD / Ubuntu

Intel Core i5-8265U, 4GB RAM and 128GB SSD define this 10.4-inch 2nd Gen build. 1024 x 768 display; supplied with Ubuntu.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i5-8265U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 10.4-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

10.4-inch 2nd Gen panel PC with Ubuntu

A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i5-8265U Memory 4GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 288 x 231 x 59.5 mm Datasheet opening 273 x 216 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
