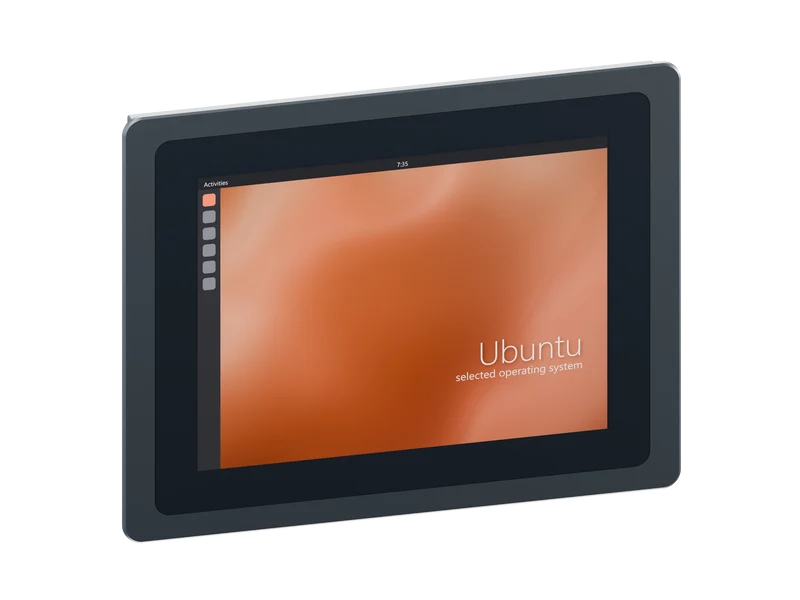

10.4-inch 2nd Gen Panel PC with 512GB SSD - i7-6500U, 4GB RAM, Ubuntu
Descrizione
10.4" 2nd Gen Panel PC - i7-6500U, 4GB / 512GB SSD / Ubuntu
Select the 512GB SSD build with Intel Core i7-6500U and 4GB RAM for this 10.4-inch 2nd Gen panel computer. 1024 x 768 display; supplied with Ubuntu.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i7-6500U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.4-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.4-inch 2nd Gen panel PC with Ubuntu
A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i7-6500U Memory 4GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 288 x 231 x 59.5 mm Datasheet opening 273 x 216 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
