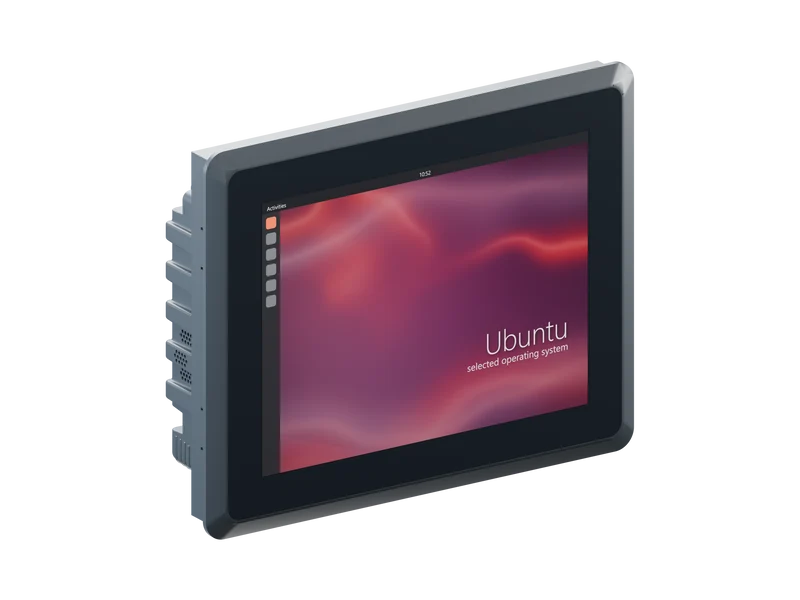

10.4-inch Q-Series i3-6100U Panel PC - 4GB RAM, 256GB SSD, Ubuntu

10.4" Q-Series Panel PC - i3-6100U, 4GB / 256GB SSD / Ubuntu

Intel Core i3-6100U, 4GB RAM and 256GB SSD define this 10.4-inch Q-Series build. 1024 x 768 display; supplied with Ubuntu.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Allocate the 256GB SSD

Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.

Integrate the i3-6100U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 10.4-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

10.4-inch Q-Series panel PC with Ubuntu

A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i3-6100U Memory 4GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 277.9 x 225.3 x 64.5 mm Datasheet opening 265.7 x 213.1 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
