Fornitore: Industrial Monitor Direct

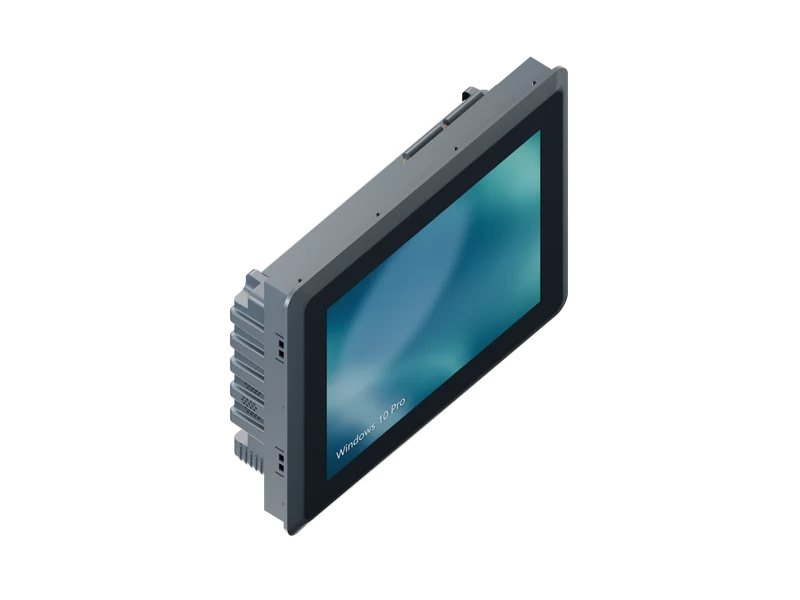

10.4-inch Q-Series i5-10210U Panel PC - 8GB RAM, 128GB SSD, Windows 10 Pro
Descrizione
10.4" Q-Series Panel PC - i5-10210U, 8GB / 128GB SSD / Windows 10 Pro
Intel Core i5-10210U, 8GB RAM and 128GB SSD define this 10.4-inch Q-Series build. 1024 x 768 display; supplied with Windows 10 Pro.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i5-10210U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.4-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.4-inch Q-Series panel PC with Windows 10 Pro
A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i5-10210U Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 277.9 x 225.3 x 64.5 mm Datasheet opening 265.7 x 213.1 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
