Fornitore: Industrial Monitor Direct

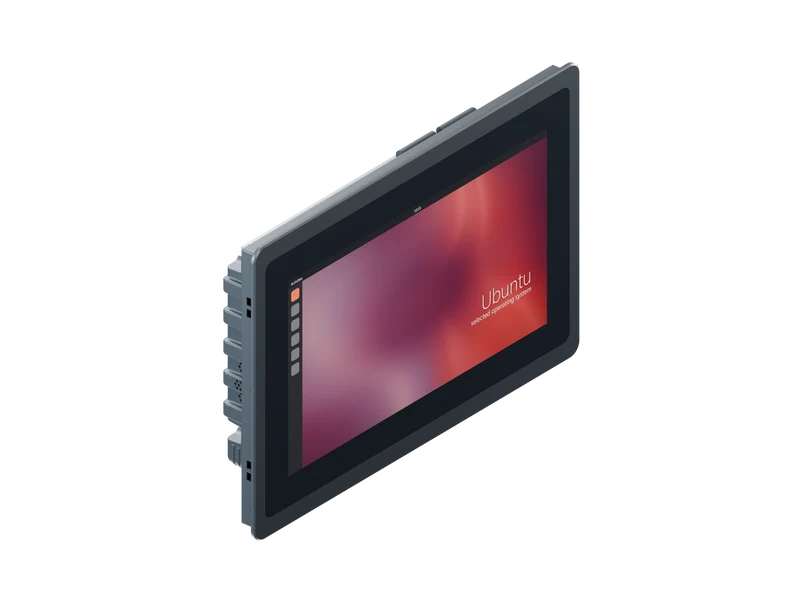

11.6-inch 2nd Gen i7-8565U Panel PC - 8GB RAM, 128GB SSD, Ubuntu
Descrizione
11.6" 2nd Gen Panel PC - i7-8565U, 8GB / 128GB SSD / Ubuntu
Intel Core i7-8565U, 8GB RAM and 128GB SSD define this 11.6-inch 2nd Gen build. 1920 x 1080 display; supplied with Ubuntu.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i7-8565U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 11.6-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
11.6-inch 2nd Gen panel PC with Ubuntu
A 11.6-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 11.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-8565U Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 323.7 x 218.5 x 57 mm Datasheet opening 311.7 x 206.5 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
