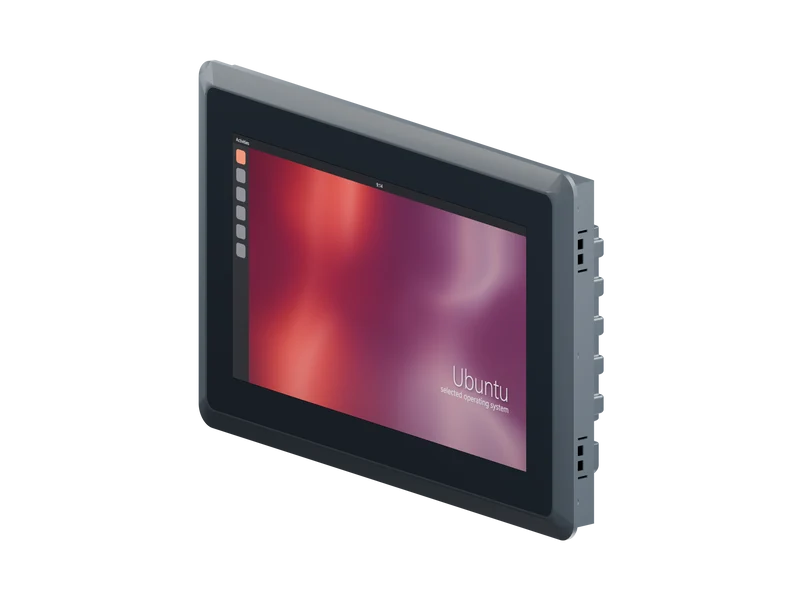

11.6-inch Q-Series Panel PC with 512GB SSD - i7-6500U, 8GB RAM, Ubuntu
Descrizione
11.6" Q-Series Panel PC - i7-6500U, 8GB / 512GB SSD / Ubuntu
Select the 512GB SSD build with Intel Core i7-6500U and 8GB RAM for this 11.6-inch Q-Series panel computer. 1920 x 1080 display; supplied with Ubuntu.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i7-6500U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 11.6-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
11.6-inch Q-Series panel PC with Ubuntu
A 11.6-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 11.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-6500U Memory 8GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 328.3 x 216.3 x 60 mm Datasheet opening 316.4 x 204.4 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
