Fornitore: Zima Store Online

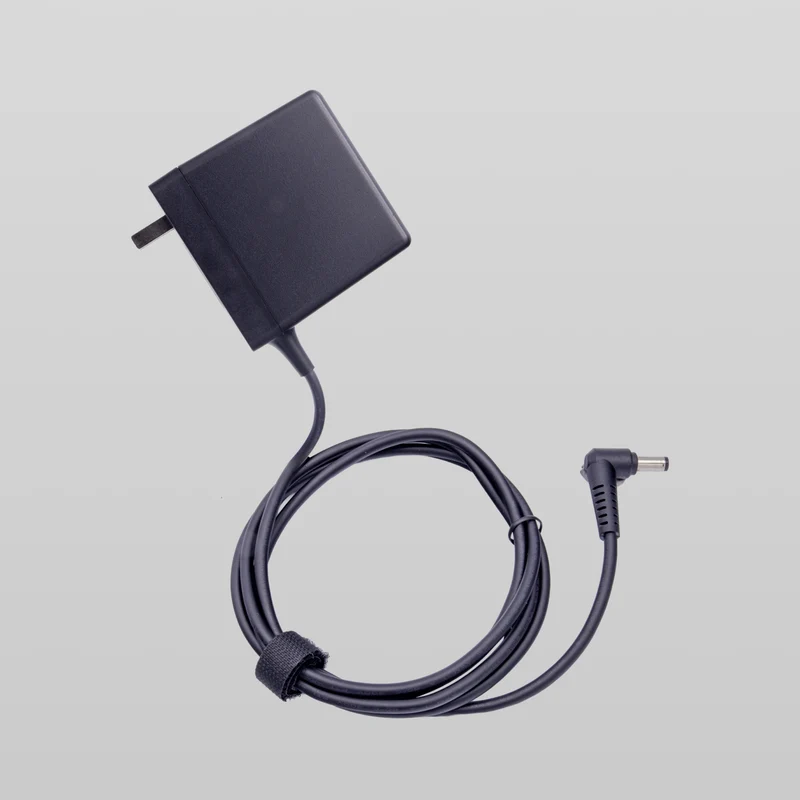

120W 12V/10A GaN Power Adapter for ZimaBoard & ZimaBoard 2
Descrizione
Introduction
Introducing our high-power power supply, designed to efficiently and reliably meet your high-performance needs. With a total output power of up to 120W, it can not only stably power large-capacity hard drives, but also directly power low-profile graphics cards (GPU) mounted on ZimaBoard 1 or ZimaBoard 2 through PCIe slots. This power supply supports a wide voltage input of 90Vac to 264Vac, ensuring compatibility with various systems and environments.Key Features
- GaN technology：higher conversion efficiency, more portable size, lower heat generation,
- Safe & Stable Power: Features short circuit and overcurrent protection to safeguard your devices and extend their lifespan.
- Premium Quality: Handpicked after testing dozens of options for the best manufacturing, assembly, and performance standards.
- Global Adaptability: Comes with interchangeable plugs (US, UK, EU, AU), ensuring it works wherever you are.
Specifications
- Input Voltage: AC 100V-240V
- Output Voltage: DC 12V 10A (120W)
- DC Plug: 5.5mm x 2.5mm
- Standby Power Consumption (Max): 0.21W
- Safety Features: Short Circuit Protection, Over Current Protection
- Certification: CE, FCC, RoHS
- Working Temperature: 0 ~ 35℃
- Dimensions: 75mm x 75mm x 32mm
- Average Efficiency：91% （115v 60Hz/230v 50Hz）
This power supply has been carefully designed and tested to meet the highest performance, reliability and safety standards to ensure that you are provided with a seamless and efficient power solution.
Application Scenario
- NAS
- AI Server
- Network router
- Interactive art installation
Shipping List
- 120W Power adapter x1
- AU plug x1
- EU plug x1
- UK plug x1
- US plug x1
How to use it?
- Align the arrows on the adapter and the plug head (both sides have a small ▲ symbol).
- Insert the plug head straight into the adapter.
- Rotate it towards "closed" until you hear a "click" sound - that means it's locked in place.
- Done! You can now safely plug it into your outlet and power on your ZimaBoard 2.
