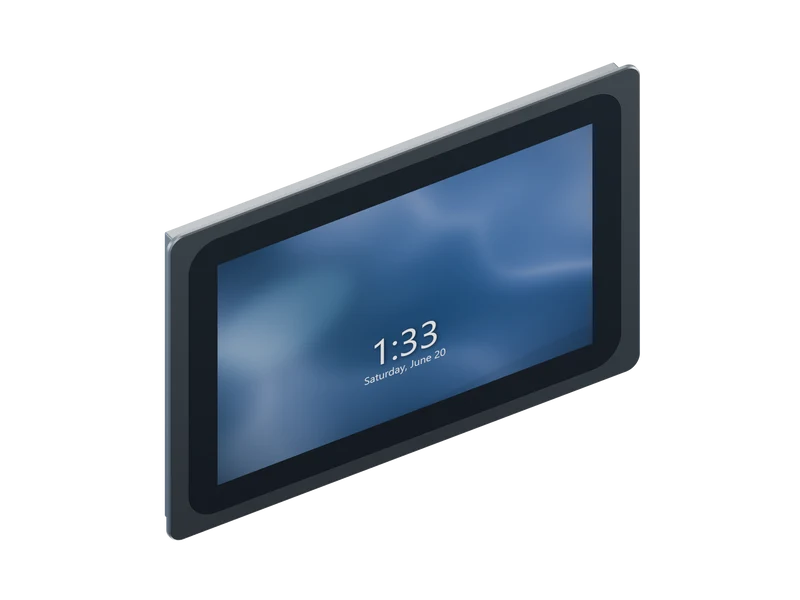

12.1-inch 2nd Gen i7-8565U Panel PC - 8GB RAM, 256GB SSD, Windows 10 Pro
Descrizione
12.1" 2nd Gen Panel PC - i7-8565U, 8GB / 256GB SSD / Windows 10 Pro
Intel Core i7-8565U, 8GB RAM and 256GB SSD define this 12.1-inch 2nd Gen build. 1280 x 800 display; supplied with Windows 10 Pro.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i7-8565U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 12.1-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
12.1-inch 2nd Gen panel PC with Windows 10 Pro
A 12.1-inch 1280 x 800 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 12.1-inch TFT LCD Resolution 1280 x 800 Processor Intel Core i7-8565U Memory 8GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 330 x 227.34 x 57.5 mm Datasheet opening 316.5 x 214.3 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
