Fornitore: Industrial Monitor Direct

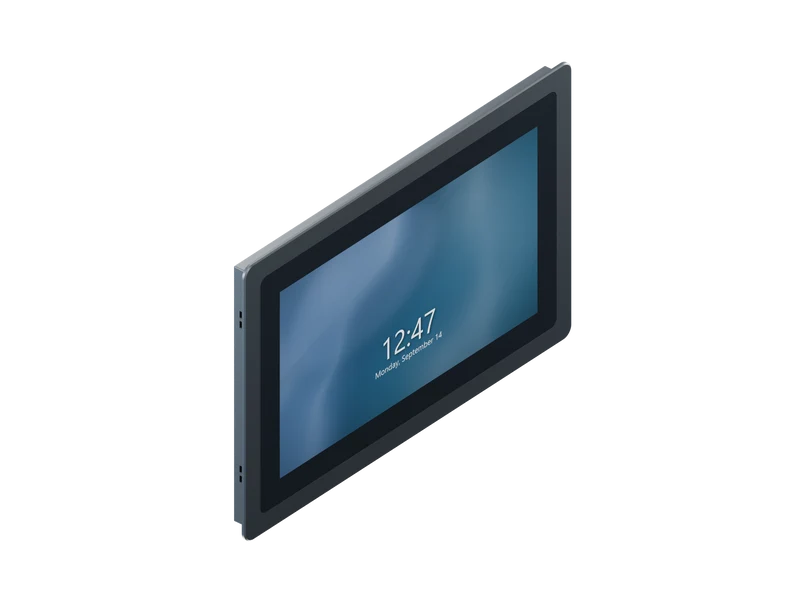

13.3-inch 2nd Gen i5-8265U Panel PC - 4GB RAM, 128GB SSD, Windows 10 Pro
Descrizione
13.3" 2nd Gen Panel PC - i5-8265U, 4GB / 128GB SSD / Windows 10 Pro
Intel Core i5-8265U, 4GB RAM and 128GB SSD define this 13.3-inch 2nd Gen build. 1920 x 1080 display; supplied with Windows 10 Pro.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i5-8265U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 13.3-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
13.3-inch 2nd Gen panel PC with Windows 10 Pro
A 13.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 13.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-8265U Memory 4GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 220 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 373.62 x 245.17 x 58.5 mm Datasheet opening 357.4 x 229 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; centered 75/100 mm VESA
