Fornitore: Industrial Monitor Direct

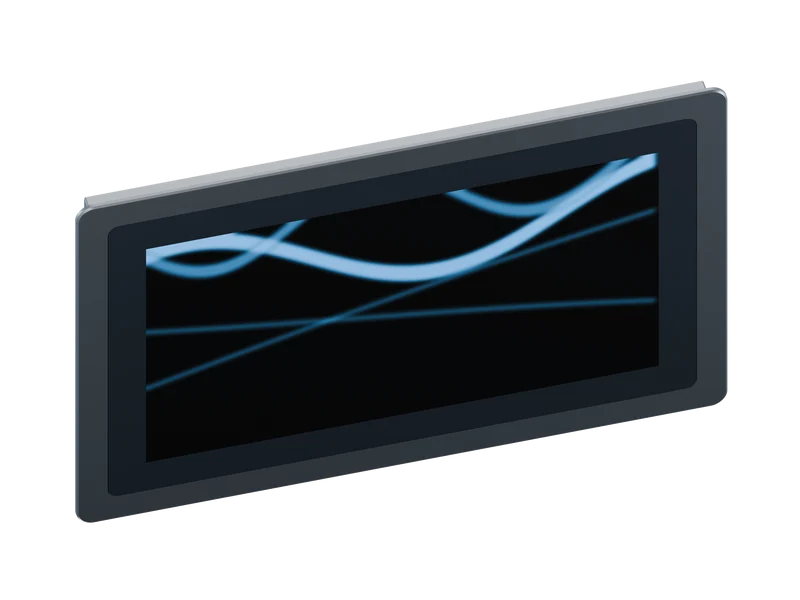

13.3-inch 2nd Gen Panel PC with 512GB SSD - i5-8265U, 4GB RAM, Windows 10 LTSC
Descrizione
13.3" 2nd Gen Panel PC - i5-8265U, 4GB / 512GB SSD / Windows 10 LTSC
Select the 512GB SSD build with Intel Core i5-8265U and 4GB RAM for this 13.3-inch 2nd Gen panel computer. 1920 x 1080 display; supplied with Windows 10 LTSC.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i5-8265U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 13.3-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
13.3-inch 2nd Gen panel PC with Windows 10 LTSC
A 13.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.
Display 13.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-8265U Memory 4GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 220 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 373.62 x 245.17 x 58.5 mm Datasheet opening 357.4 x 229 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; centered 75/100 mm VESA
