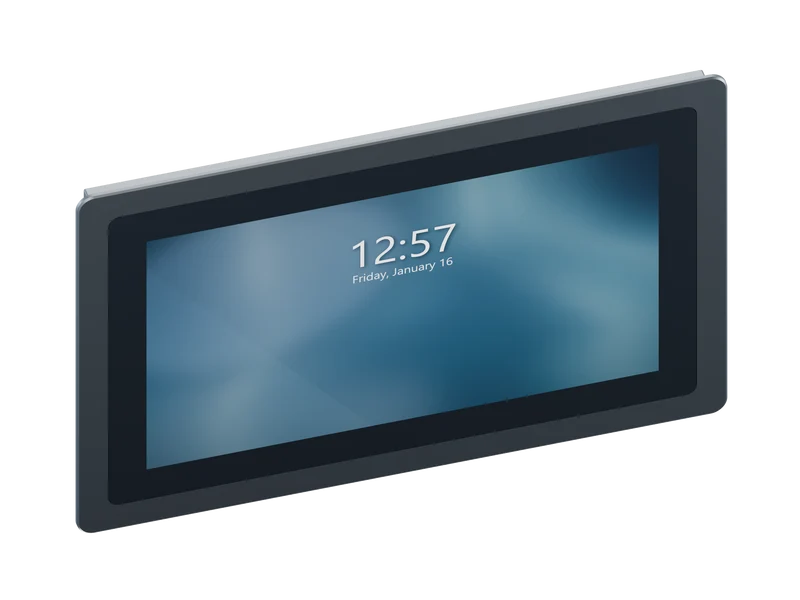

13.3-inch 2nd Gen Panel PC with 512GB SSD - i7-8565U, 8GB RAM, Windows 10 Pro

13.3" 2nd Gen Panel PC - i7-8565U, 8GB / 512GB SSD / Windows 10 Pro

Select the 512GB SSD build with Intel Core i7-8565U and 8GB RAM for this 13.3-inch 2nd Gen panel computer. 1920 x 1080 display; supplied with Windows 10 Pro.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the i7-8565U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 13.3-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

13.3-inch 2nd Gen panel PC with Windows 10 Pro

A 13.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 13.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-8565U Memory 8GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 220 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 373.62 x 245.17 x 58.5 mm Datasheet opening 357.4 x 229 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; centered 75/100 mm VESA
