15-inch Q-Series i7-8565U Panel PC - 8GB RAM, 128GB SSD, Ubuntu

15" Q-Series Panel PC - i7-8565U, 8GB / 128GB SSD / Ubuntu

Intel Core i7-8565U, 8GB RAM and 128GB SSD define this 15-inch Q-Series build. 1024 x 768 display; supplied with Ubuntu.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i7-8565U platform

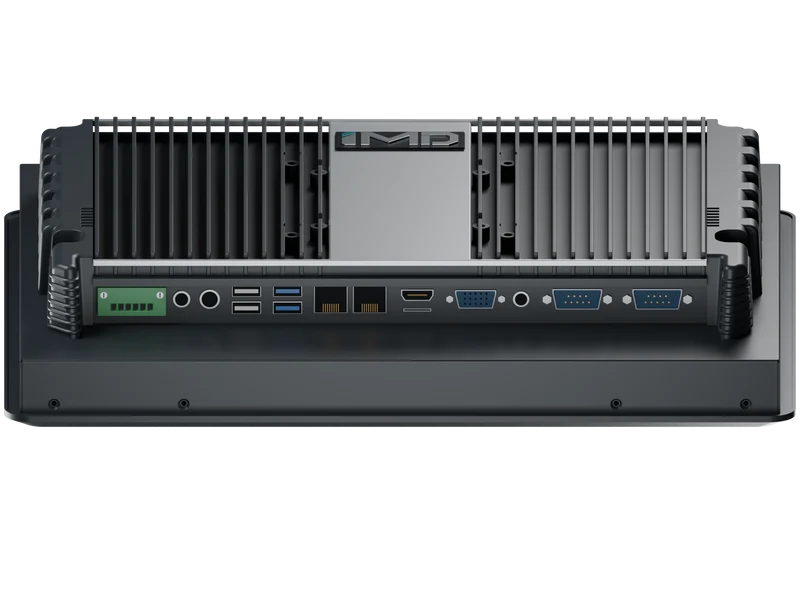

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 15-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

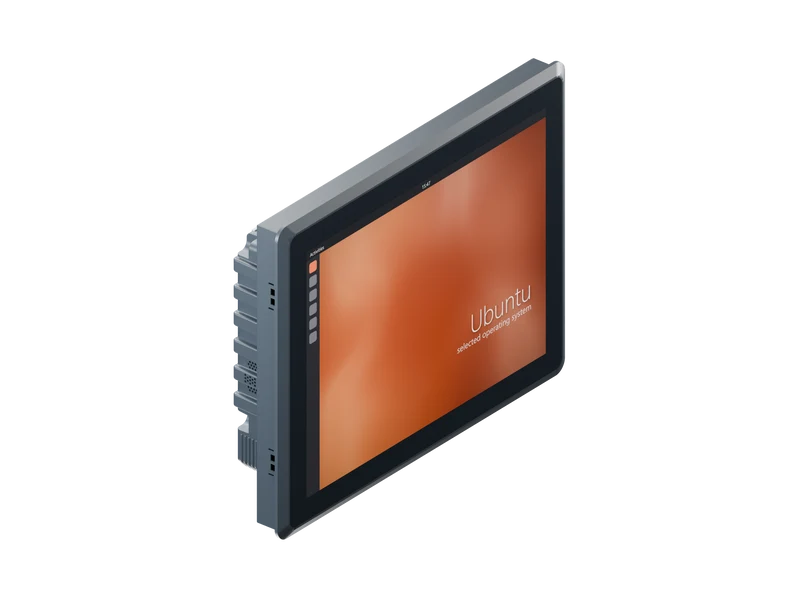

15-inch Q-Series panel PC with Ubuntu

A 15-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

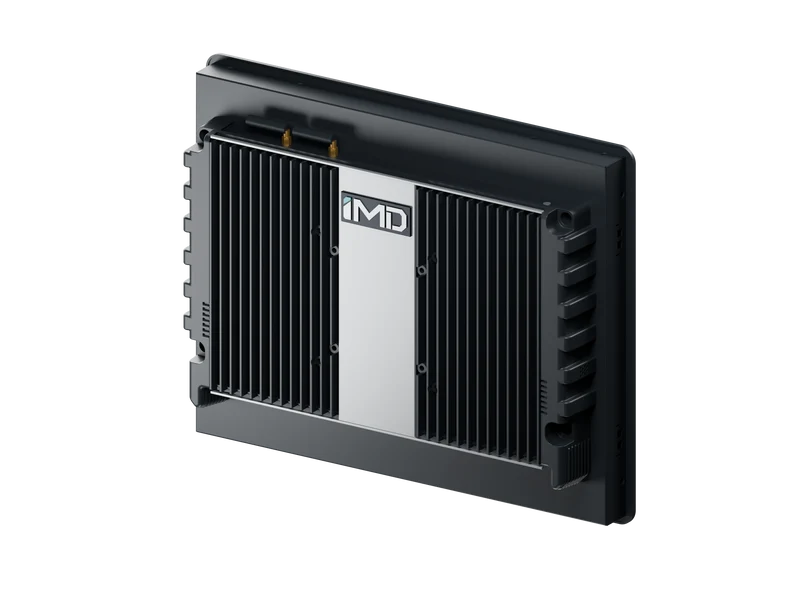

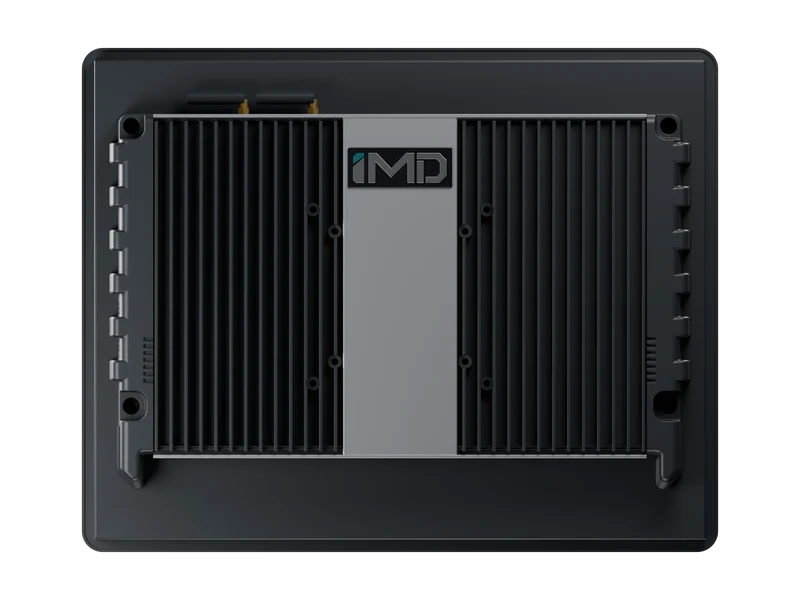

Display 15-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i7-8565U Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 366.1 x 290 x 68 mm Datasheet opening 353.8 x 277.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
