Fornitore: Industrial Monitor Direct

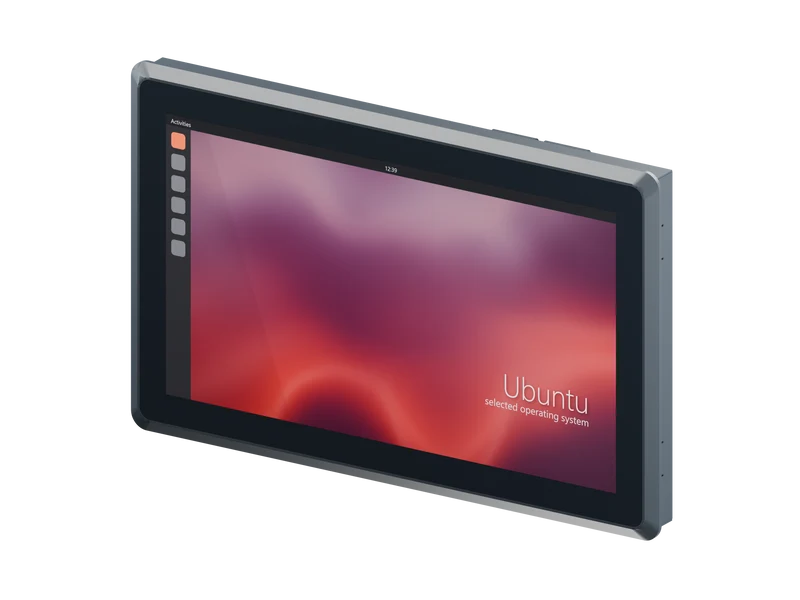

15.6-inch Q-Series i5-6200U Panel PC - 8GB RAM, 256GB SSD, Ubuntu
Descrizione
15.6" Q-Series Panel PC - i5-6200U, 8GB / 256GB SSD / Ubuntu
Intel Core i5-6200U, 8GB RAM and 256GB SSD define this 15.6-inch Q-Series build. 1920 x 1080 display; supplied with Ubuntu.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i5-6200U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 15.6-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
15.6-inch Q-Series panel PC with Ubuntu
A 15.6-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 15.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-6200U Memory 8GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 405.3 x 254.6 x 67 mm Datasheet opening 393.2 x 244.2 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA, center Z-2.5 mm
