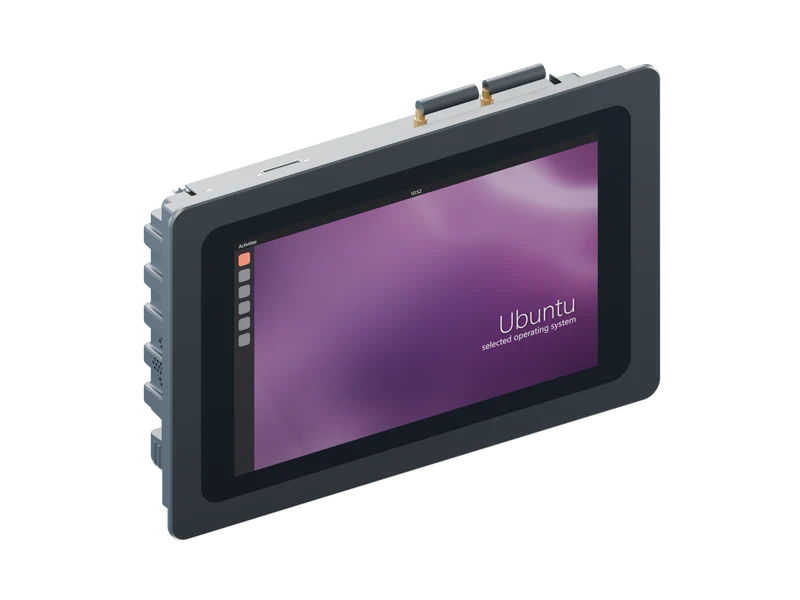

16GB 10.1-inch 2nd Gen Panel PC - i7-6500U, 256GB SSD, Ubuntu
Descrizione
10.1" 2nd Gen Panel PC - i7-6500U, 16GB / 256GB SSD / Ubuntu
This 16GB configuration combines Intel Core i7-6500U with 256GB SSD in the 10.1-inch 2nd Gen enclosure. 1280 x 800 display; supplied with Ubuntu.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i7-6500U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.1-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.1-inch 2nd Gen panel PC with Ubuntu
A 10.1-inch 1280 x 800 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 10.1-inch TFT LCD Resolution 1280 x 800 Processor Intel Core i7-6500U Memory 16GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 293.6 x 193.6 x 58 mm Datasheet opening 276.5 x 176.5 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
