Fornitore: Industrial Monitor Direct

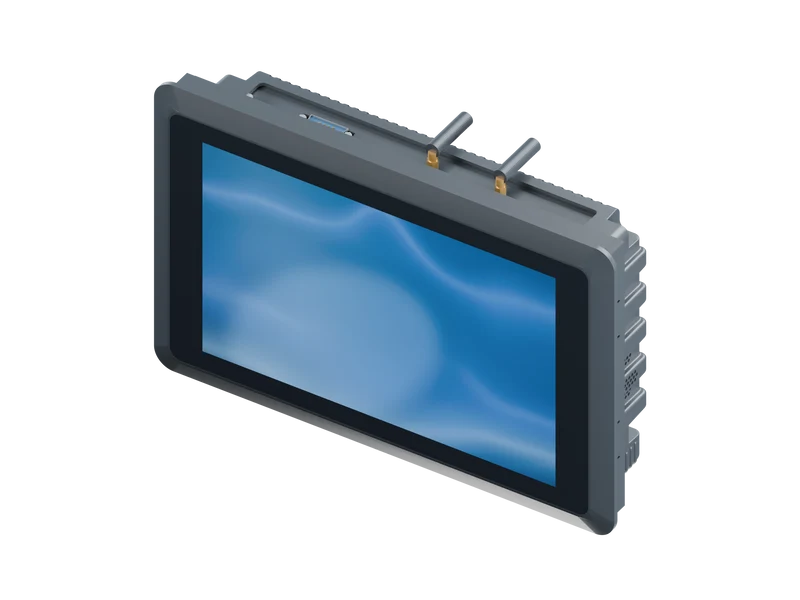

16GB 10.1-inch Q-Series Panel PC - i7-8565U, 256GB SSD, Windows 10 Pro
Descrizione
10.1" Q-Series Panel PC - i7-8565U, 16GB / 256GB SSD / Windows 10 Pro
This 16GB configuration combines Intel Core i7-8565U with 256GB SSD in the 10.1-inch Q-Series enclosure. 1280 × 800 / 16:10 display; supplied with Windows 10 Pro.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i7-8565U platform
Documented interfaces: 2 × LAN / 4 × USB / 2 × RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.1-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.1-inch Q-Series panel PC with Windows 10 Pro
A 10.1 inch HMI panel PC with Intel Core i7 processors for CNC operator terminals, food processing supervisory stations and building automation front ends, combining a 1280 x 800 capacitive touch display, IP65 front, fanless aluminum enclosure and 12-36V DC power input. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 10.1-inch TFT LCD Resolution 1280 × 800 / 16:10 Processor Intel Core i7-8565U Memory 16GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m² Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 283.7 × 186.2 × 60 mm Datasheet opening 271.8 x 174.3 mm Ethernet 2 × LAN USB 2 × USB 2.0 + 2 × USB 3.0 Audio 1 × Audio Out Serial 2 × RS232 Video output HDMI + VGA
