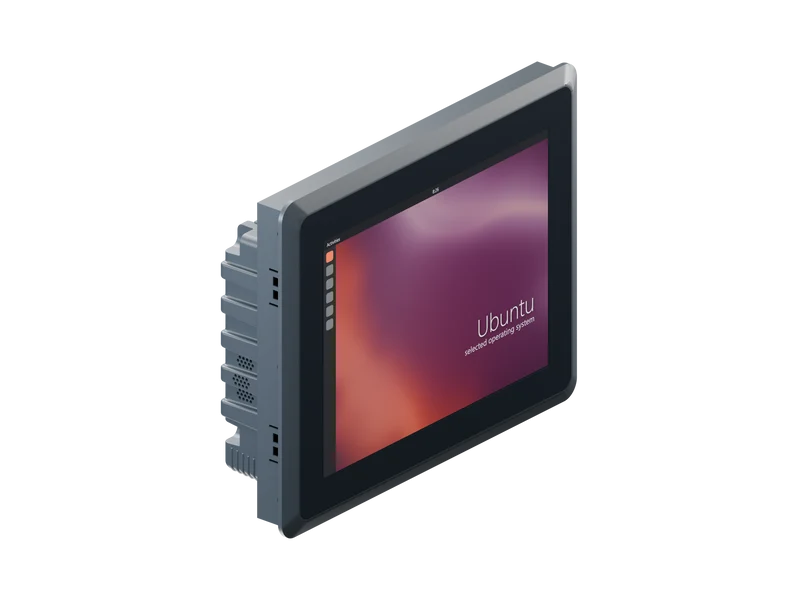

16GB 10.4-inch Q-Series Panel PC - i3-6100U, 128GB SSD, Ubuntu
Descrizione
10.4" Q-Series Panel PC - i3-6100U, 16GB / 128GB SSD / Ubuntu
This 16GB configuration combines Intel Core i3-6100U with 128GB SSD in the 10.4-inch Q-Series enclosure. 1024 x 768 display; supplied with Ubuntu.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i3-6100U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 10.4-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
10.4-inch Q-Series panel PC with Ubuntu
A 10.4-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 10.4-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i3-6100U Memory 16GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 277.9 x 225.3 x 64.5 mm Datasheet opening 265.7 x 213.1 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
