Fornitore: Industrial Monitor Direct

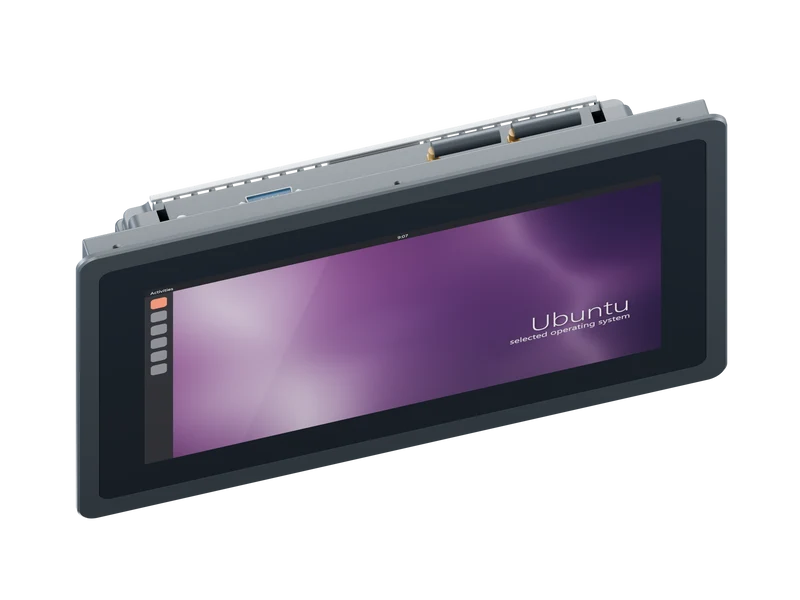

16GB 11.6-inch 2nd Gen Panel PC - i7-10510U, 512GB SSD, Ubuntu
Descrizione
11.6" 2nd Gen Panel PC - i7-10510U, 16GB / 512GB SSD / Ubuntu
This 16GB configuration combines Intel Core i7-10510U with 512GB SSD in the 11.6-inch 2nd Gen enclosure. 1920 x 1080 display; supplied with Ubuntu.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i7-10510U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 11.6-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
11.6-inch 2nd Gen panel PC with Ubuntu
A 11.6-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 11.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-10510U Memory 16GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 323.7 x 218.5 x 57 mm Datasheet opening 311.7 x 206.5 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
