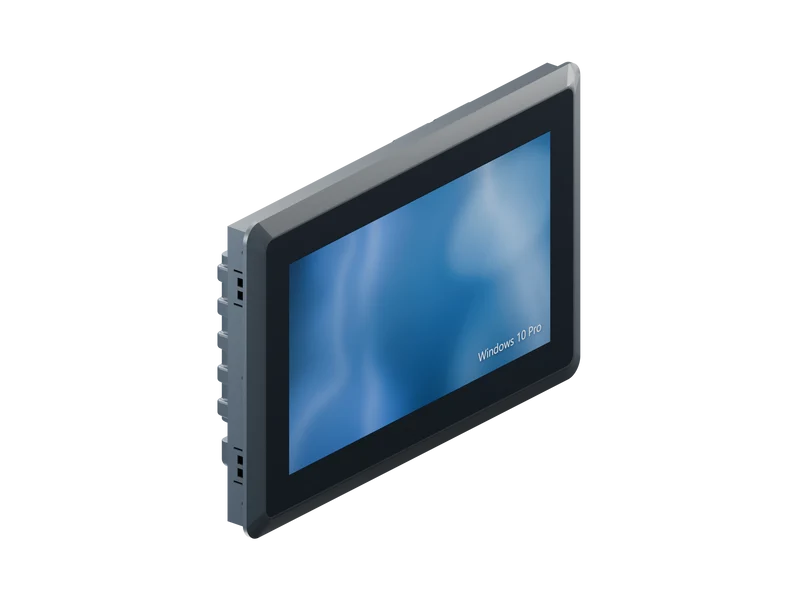

16GB 11.6-inch Q-Series Panel PC - i3-6100U, 128GB SSD, Windows 10 Pro
Descrizione
11.6" Q-Series Panel PC - i3-6100U, 16GB / 128GB SSD / Windows 10 Pro
This 16GB configuration combines Intel Core i3-6100U with 128GB SSD in the 11.6-inch Q-Series enclosure. 1920 x 1080 display; supplied with Windows 10 Pro.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i3-6100U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 11.6-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
11.6-inch Q-Series panel PC with Windows 10 Pro
A 11.6-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 11.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-6100U Memory 16GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 328.3 x 216.3 x 60 mm Datasheet opening 316.4 x 204.4 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
