Fornitore: Industrial Monitor Direct

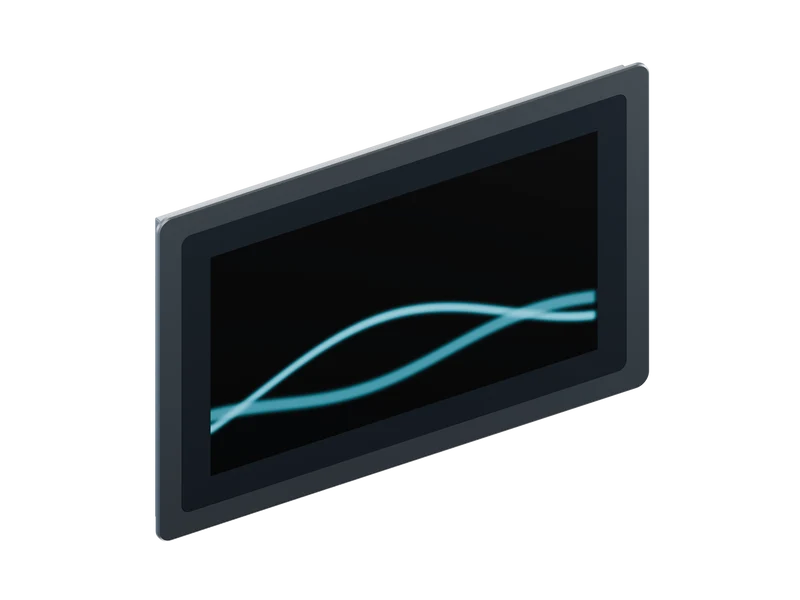

16GB 13.3-inch 2nd Gen Panel PC - i3-6100U, 256GB SSD, Windows 10 Pro
Descrizione
13.3" 2nd Gen Panel PC - i3-6100U, 16GB / 256GB SSD / Windows 10 Pro
This 16GB configuration combines Intel Core i3-6100U with 256GB SSD in the 13.3-inch 2nd Gen enclosure. 1920 x 1080 display; supplied with Windows 10 Pro.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i3-6100U platform

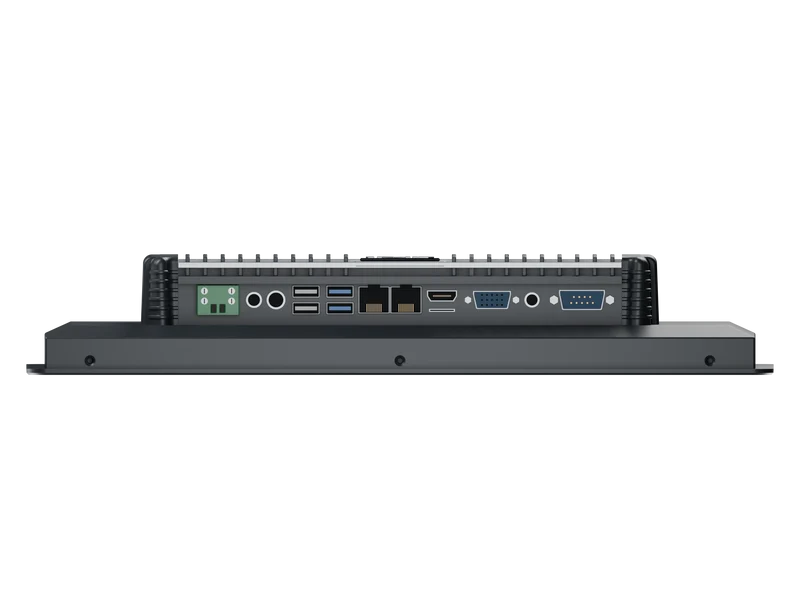

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 13.3-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
13.3-inch 2nd Gen panel PC with Windows 10 Pro
A 13.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 13.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-6100U Memory 16GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 220 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 373.62 x 245.17 x 58.5 mm Datasheet opening 357.4 x 229 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; centered 75/100 mm VESA
