16GB 15-inch 2nd Gen Panel PC - i5-8265U, 128GB SSD, Windows 10 Pro
Descrizione

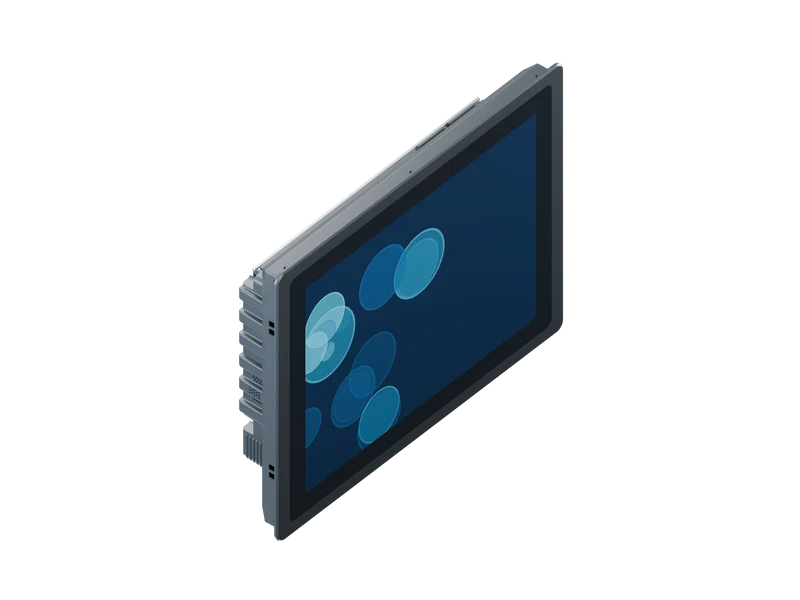

15" 2nd Gen Panel PC - i5-8265U, 16GB / 128GB SSD / Windows 10 Pro
This 16GB configuration combines Intel Core i5-8265U with 128GB SSD in the 15-inch 2nd Gen enclosure. 1024 x 768 display; supplied with Windows 10 Pro.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Budget the 128GB system drive
Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.
Integrate the i5-8265U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 15-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
15-inch 2nd Gen panel PC with Windows 10 Pro
A 15-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.
Display 15-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i5-8265U Memory 16GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 379 x 298.5 x 65 mm Datasheet opening 363 x 283 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
