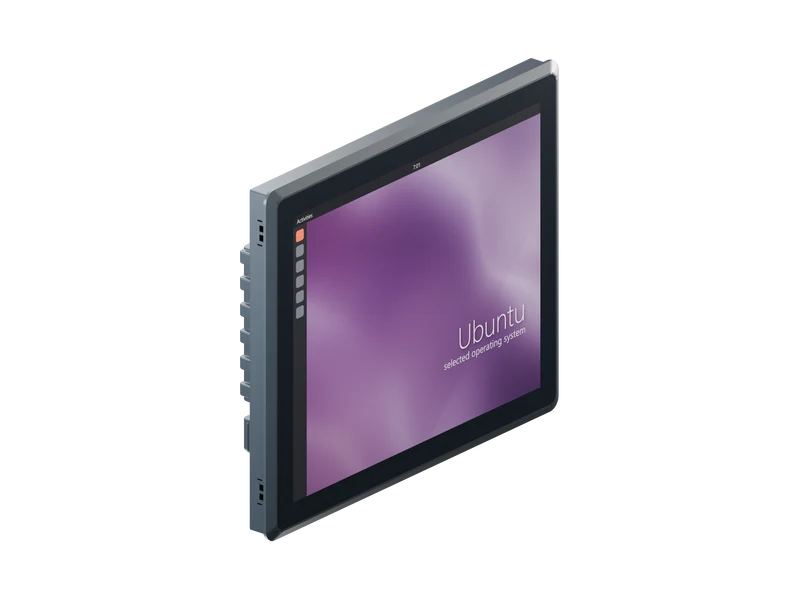

16GB 17-inch Q-Series Panel PC - i7-6500U, 128GB SSD, Ubuntu

17" Q-Series Panel PC - i7-6500U, 16GB / 128GB SSD / Ubuntu

This 16GB configuration combines Intel Core i7-6500U with 128GB SSD in the 17-inch Q-Series enclosure. 1280 x 1024 display; supplied with Ubuntu.

Specify the 16GB memory requirement

This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i7-6500U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 17-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

17-inch Q-Series panel PC with Ubuntu

A 17-inch 1280 x 1024 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 17-inch TFT LCD Resolution 1280 x 1024 Processor Intel Core i7-6500U Memory 16GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 399.2 x 331.6 x 64.5 mm Datasheet opening 385.3 x 323.4 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
