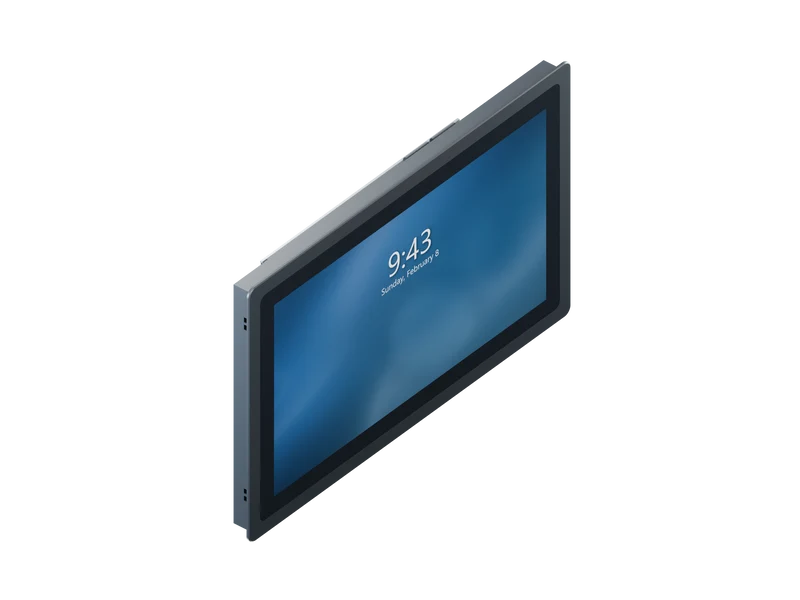

16GB 18.5-inch 2nd Gen Panel PC - i3-8145U, 128GB SSD, Windows 10 Pro

18.5" 2nd Gen Panel PC - i3-8145U, 16GB / 128GB SSD / Windows 10 Pro

This 16GB configuration combines Intel Core i3-8145U with 128GB SSD in the 18.5-inch 2nd Gen enclosure. 1920 x 1080 display; supplied with Windows 10 Pro.

Specify the 16GB memory requirement

This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i3-8145U platform

Documented interfaces: 2 x Gigabit LAN / 4 x USB / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 18.5-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

18.5-inch 2nd Gen panel PC with Windows 10 Pro

An 18.5-inch Full HD panel computer for wide machine interfaces, with dual Ethernet and two physical serial ports along the lower connection edge. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 18.5-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-8145U Memory 16GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 486.5 x 307.4 x 67 mm Datasheet opening Not provided; confirm before machining Ethernet 2 x Gigabit LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 x RS232; other serial standards require configuration review Video output HDMI + VGA
