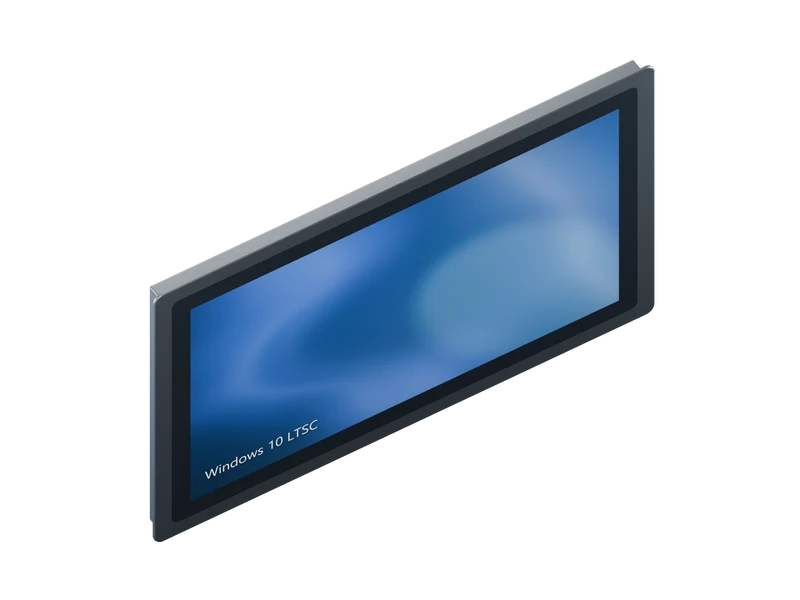

16GB 21.5-inch 2nd Gen Panel PC - i3-8145U, 256GB SSD, Windows 10 LTSC
Descrizione
21.5" 2nd Gen Panel PC - i3-8145U, 16GB / 256GB SSD / Windows 10 LTSC
This 16GB configuration combines Intel Core i3-8145U with 256GB SSD in the 21.5-inch 2nd Gen enclosure. 1920 x 1080 display; supplied with Windows 10 LTSC.
Specify the 16GB memory requirement
This build supplies 16GB RAM. Use the application vendor's requirements and measured peak memory use to decide whether that capacity is needed for your deployment.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i3-8145U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 21.5-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
21.5-inch 2nd Gen panel PC with Windows 10 LTSC
A 21.5-inch 1920 x 1080 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.
Display 21.5-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-8145U Memory 16GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 557 x 345 x 65 mm Datasheet opening 540.6 x 328.6 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
