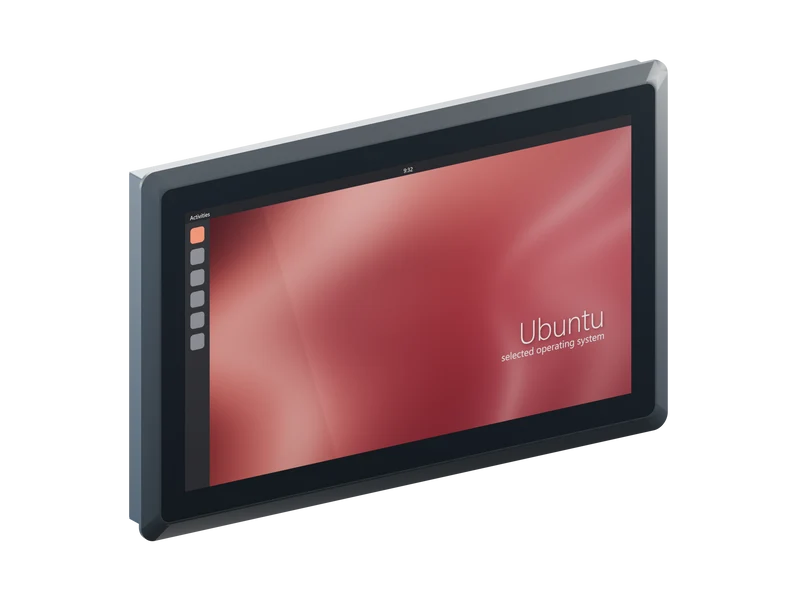

17.3-inch Q-Series i7-6500U Panel PC - 4GB RAM, 256GB SSD, Ubuntu

17.3" Q-Series Panel PC - i7-6500U, 4GB / 256GB SSD / Ubuntu

Intel Core i7-6500U, 4GB RAM and 256GB SSD define this 17.3-inch Q-Series build. 1920 x 1080 display; supplied with Ubuntu.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Allocate the 256GB SSD

Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.

Integrate the i7-6500U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 17.3-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

17.3-inch Q-Series panel PC with Ubuntu

A 17.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 17.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-6500U Memory 4GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 452 x 285 x 70.5 mm Datasheet opening 436.8 x 269.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
