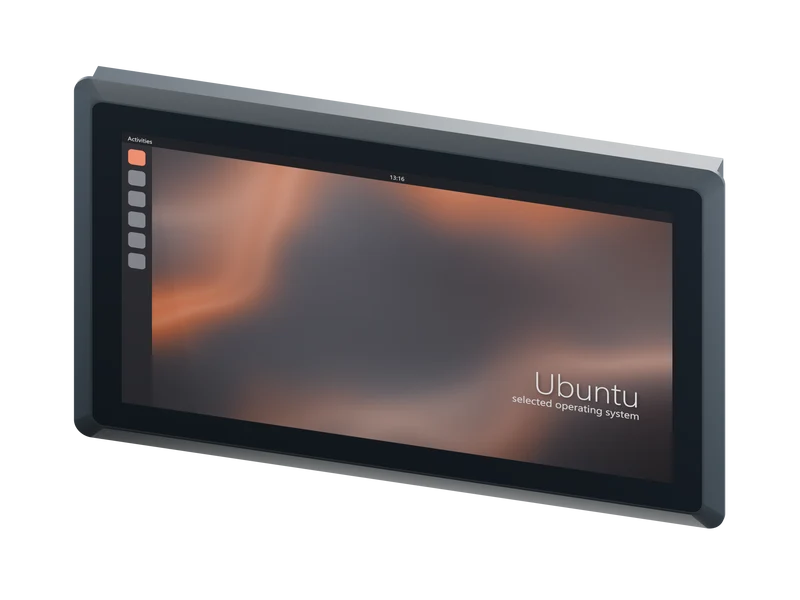

17.3-inch Q-Series i7-8565U Panel PC - 4GB RAM, 128GB SSD, Ubuntu

17.3" Q-Series Panel PC - i7-8565U, 4GB / 128GB SSD / Ubuntu

Intel Core i7-8565U, 4GB RAM and 128GB SSD define this 17.3-inch Q-Series build. 1920 x 1080 display; supplied with Ubuntu.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i7-8565U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 17.3-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

17.3-inch Q-Series panel PC with Ubuntu

A 17.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 17.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-8565U Memory 4GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 452 x 285 x 70.5 mm Datasheet opening 436.8 x 269.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
