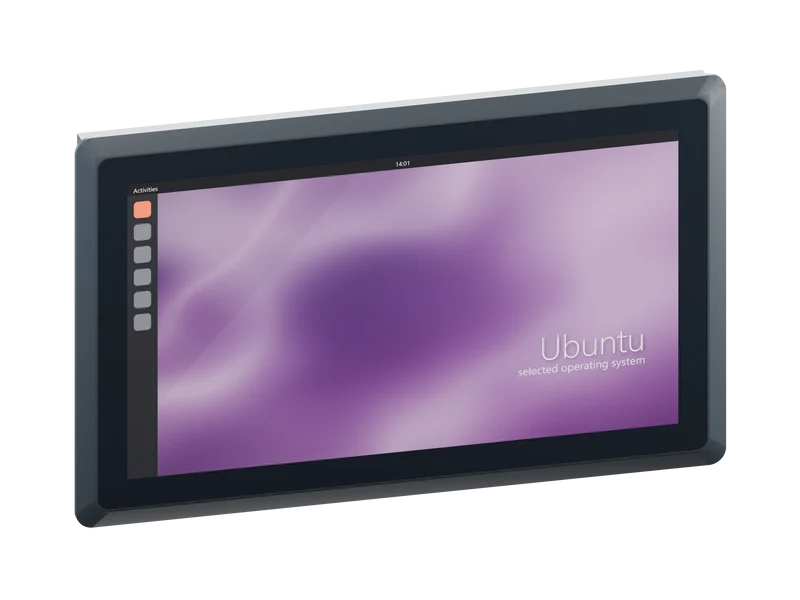

17.3-inch Q-Series Panel PC with 512GB SSD - i3-6100U, 4GB RAM, Ubuntu
Descrizione
17.3" Q-Series Panel PC - i3-6100U, 4GB / 512GB SSD / Ubuntu
Select the 512GB SSD build with Intel Core i3-6100U and 4GB RAM for this 17.3-inch Q-Series panel computer. 1920 x 1080 display; supplied with Ubuntu.
Plan a defined software image
With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i3-6100U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 17.3-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
17.3-inch Q-Series panel PC with Ubuntu
A 17.3-inch Full HD panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 17.3-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-6100U Memory 4GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 452 x 285 x 70.5 mm Datasheet opening 436.8 x 269.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
