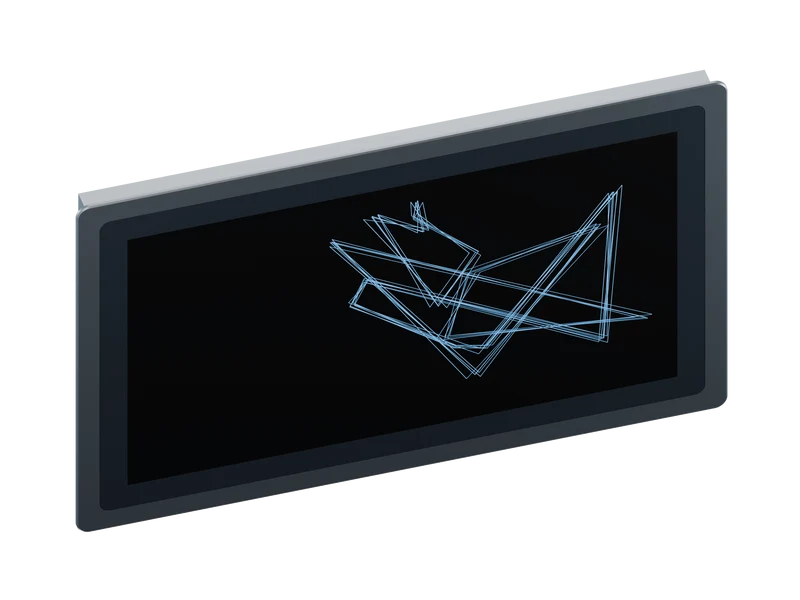

18.5-inch 2nd Gen Panel PC with 512GB SSD - i3-8145U, 4GB RAM, Windows 10 Pro

18.5" 2nd Gen Panel PC - i3-8145U, 4GB / 512GB SSD / Windows 10 Pro

Select the 512GB SSD build with Intel Core i3-8145U and 4GB RAM for this 18.5-inch 2nd Gen panel computer. 1920 x 1080 display; supplied with Windows 10 Pro.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the i3-8145U platform

Documented interfaces: 2 x Gigabit LAN / 4 x USB / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 18.5-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

18.5-inch 2nd Gen panel PC with Windows 10 Pro

An 18.5-inch Full HD panel computer for wide machine interfaces, with dual Ethernet and two physical serial ports along the lower connection edge. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 18.5-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-8145U Memory 4GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 486.5 x 307.4 x 67 mm Datasheet opening Not provided; confirm before machining Ethernet 2 x Gigabit LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 x RS232; other serial standards require configuration review Video output HDMI + VGA
