Fornitore: Industrial Monitor Direct

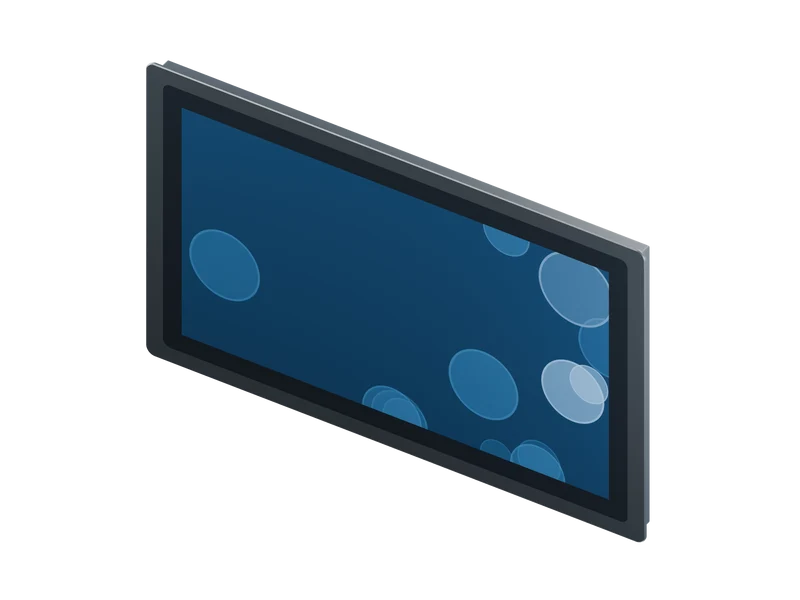

21.5-inch 2nd Gen i5-8265U Panel PC - 8GB RAM, 256GB SSD, Windows 10 LTSC
Descrizione
21.5" 2nd Gen Panel PC - i5-8265U, 8GB / 256GB SSD / Windows 10 LTSC
Intel Core i5-8265U, 8GB RAM and 256GB SSD define this 21.5-inch 2nd Gen build. 1920 x 1080 display; supplied with Windows 10 LTSC.
Account for the complete 8GB workload
Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.
Allocate the 256GB SSD
Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.
Integrate the i5-8265U platform
Documented interfaces: 2 x Gigabit LAN / 4 x USB / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 21.5-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
21.5-inch 2nd Gen panel PC with Windows 10 LTSC
A full-HD panel computer for equipment interfaces with room for controls, status views and operating data. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.
Display 21.5-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-8265U Memory 8GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 557 x 345 x 65 mm Datasheet opening 540.6 x 328.6 mm Ethernet 2 x Gigabit LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 x RS232; other serial standards require configuration review Video output HDMI + VGA
