32GB 12-inch Q-Series Panel PC - i7-8565U, 512GB SSD, Ubuntu
Descrizione

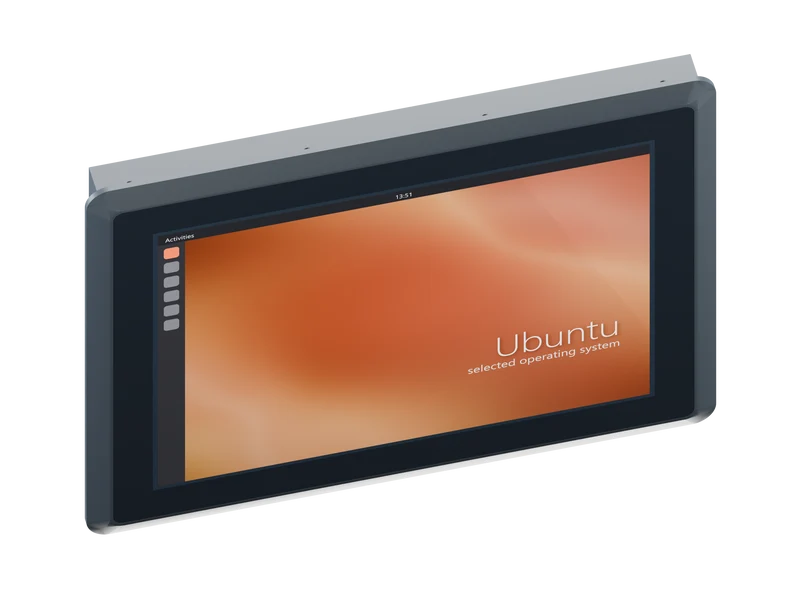

12" Q-Series Panel PC - i7-8565U, 32GB / 512GB SSD / Ubuntu
This 32GB configuration combines Intel Core i7-8565U with 512GB SSD in the 12-inch Q-Series enclosure. 1024 x 768 display; supplied with Ubuntu.
Match a 32GB project specification
Choose this build when the project calls for 32GB RAM on this processor platform. Memory capacity is separate from CPU performance; validate the complete workload before rollout.
Plan local records on the 512GB SSD
This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.
Integrate the i7-8565U platform
Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.
This is a configuration of the 12-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.
12-inch Q-Series panel PC with Ubuntu
A 12-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.
Display 12-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i7-8565U Memory 32GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 500 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 312.3 x 250.8 x 62 mm Datasheet opening 300.3 x 238.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
