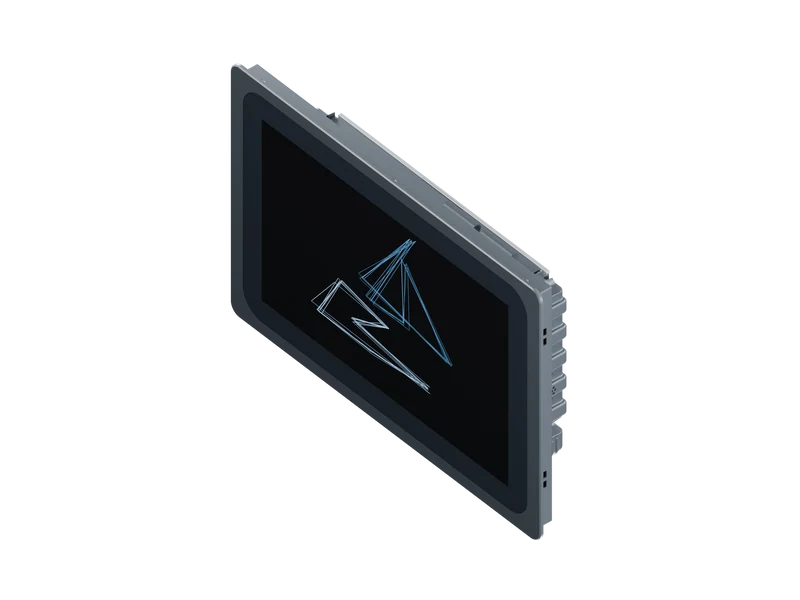

32GB 12.1-inch 2nd Gen Panel PC - i5-8265U, 512GB SSD, Windows 10 Pro

12.1" 2nd Gen Panel PC - i5-8265U, 32GB / 512GB SSD / Windows 10 Pro

This 32GB configuration combines Intel Core i5-8265U with 512GB SSD in the 12.1-inch 2nd Gen enclosure. 1280 x 800 display; supplied with Windows 10 Pro.

Match a 32GB project specification

Choose this build when the project calls for 32GB RAM on this processor platform. Memory capacity is separate from CPU performance; validate the complete workload before rollout.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the i5-8265U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 12.1-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

12.1-inch 2nd Gen panel PC with Windows 10 Pro

A 12.1-inch 1280 x 800 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 12.1-inch TFT LCD Resolution 1280 x 800 Processor Intel Core i5-8265U Memory 32GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 330 x 227.34 x 57.5 mm Datasheet opening 316.5 x 214.3 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, one top and one bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
