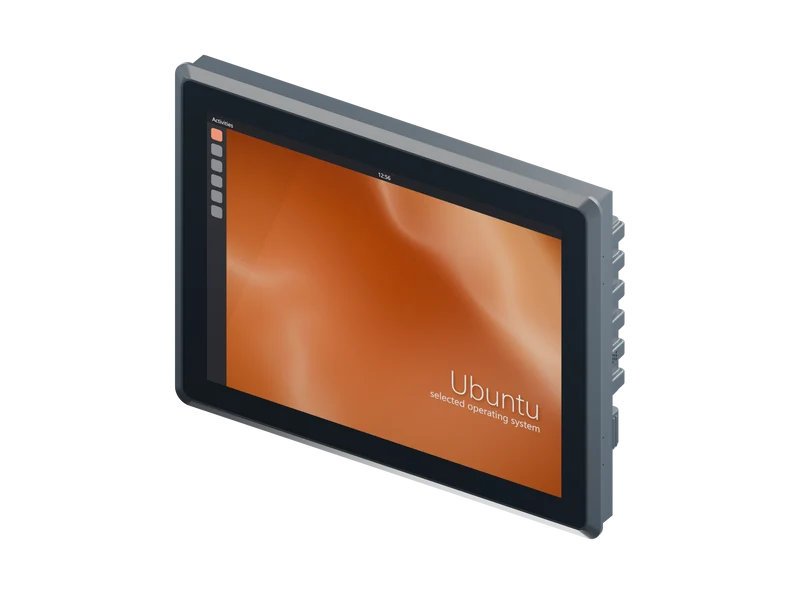

32GB 15-inch Q-Series Panel PC - i5-6200U, 256GB SSD, Ubuntu

15" Q-Series Panel PC - i5-6200U, 32GB / 256GB SSD / Ubuntu

This 32GB configuration combines Intel Core i5-6200U with 256GB SSD in the 15-inch Q-Series enclosure. 1024 x 768 display; supplied with Ubuntu.

Match a 32GB project specification

Choose this build when the project calls for 32GB RAM on this processor platform. Memory capacity is separate from CPU performance; validate the complete workload before rollout.

Allocate the 256GB SSD

Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.

Integrate the i5-6200U platform

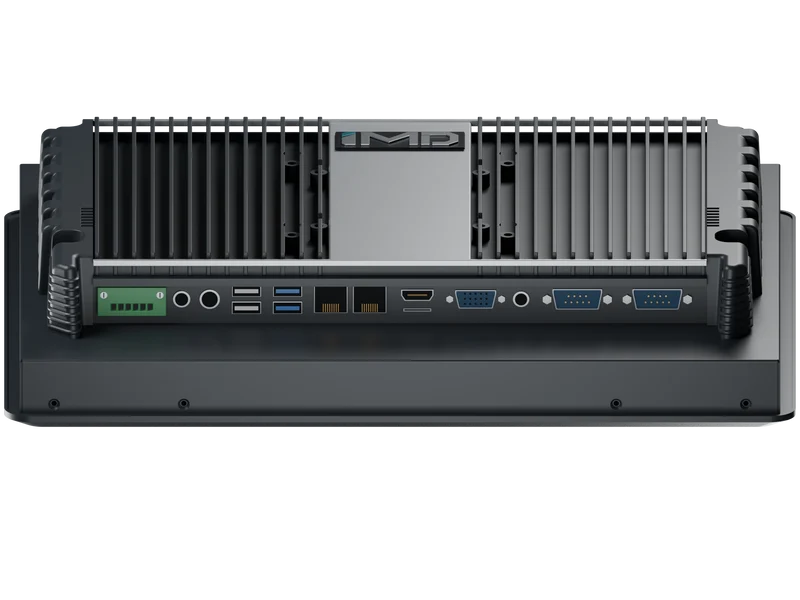

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 15-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

15-inch Q-Series panel PC with Ubuntu

A 15-inch 1024 x 768 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 15-inch TFT LCD Resolution 1024 x 768 Processor Intel Core i5-6200U Memory 32GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 366.1 x 290 x 68 mm Datasheet opening 353.8 x 277.8 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA
