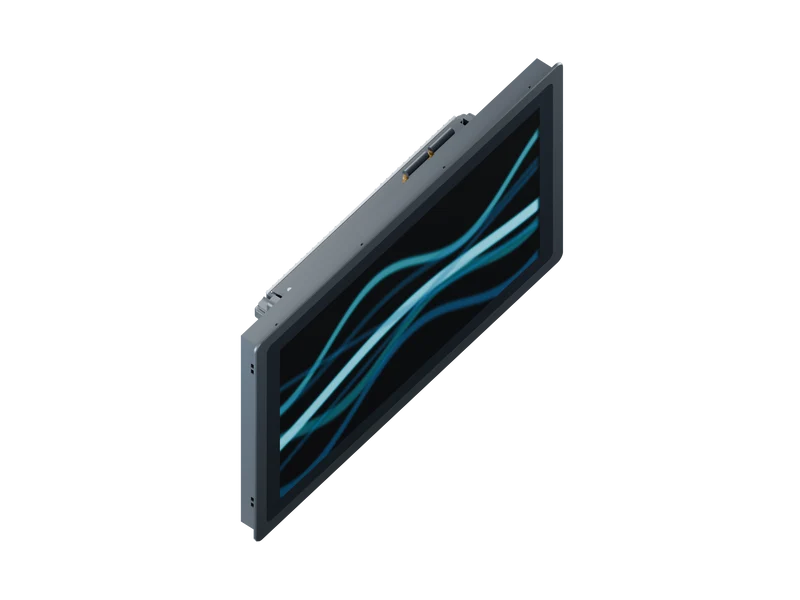

32GB 18.5-inch 2nd Gen Panel PC - i3-10110U, 128GB SSD, Windows 10 Pro

18.5" 2nd Gen Panel PC - i3-10110U, 32GB / 128GB SSD / Windows 10 Pro

This 32GB configuration combines Intel Core i3-10110U with 128GB SSD in the 18.5-inch 2nd Gen enclosure. 1920 x 1080 display; supplied with Windows 10 Pro.

Match a 32GB project specification

Choose this build when the project calls for 32GB RAM on this processor platform. Memory capacity is separate from CPU performance; validate the complete workload before rollout.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i3-10110U platform

Documented interfaces: 2 x Gigabit LAN / 4 x USB / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 18.5-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

18.5-inch 2nd Gen panel PC with Windows 10 Pro

An 18.5-inch Full HD panel computer for wide machine interfaces, with dual Ethernet and two physical serial ports along the lower connection edge. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 18.5-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i3-10110U Memory 32GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 400 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12–36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature −10°C to 60°C Enclosure 486.5 x 307.4 x 67 mm Datasheet opening Not provided; confirm before machining Ethernet 2 x Gigabit LAN USB 2 × USB 2.0 + 2 × USB 3.0 Serial 2 x RS232; other serial standards require configuration review Video output HDMI + VGA
