Fornitore: embedded

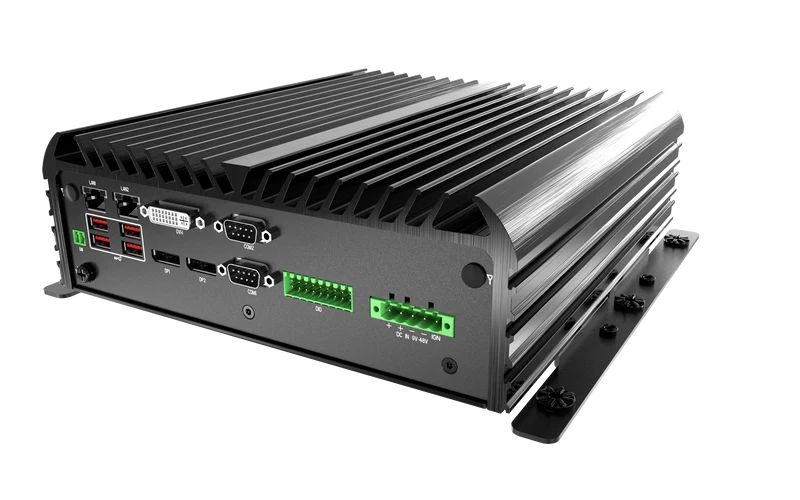

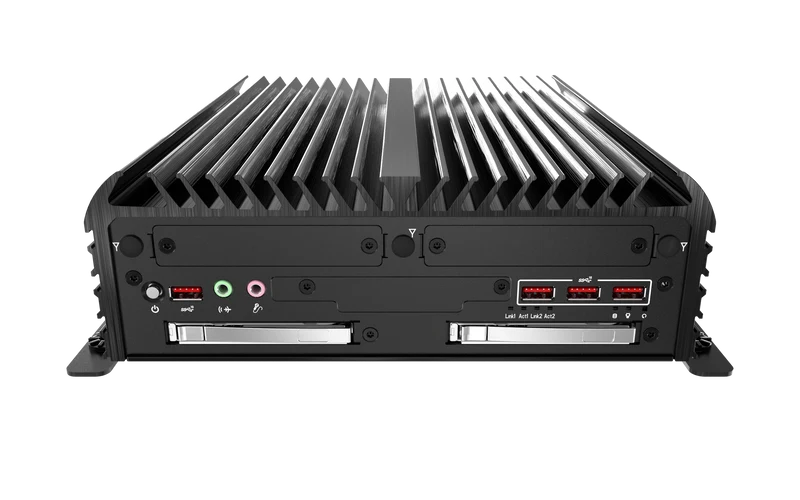

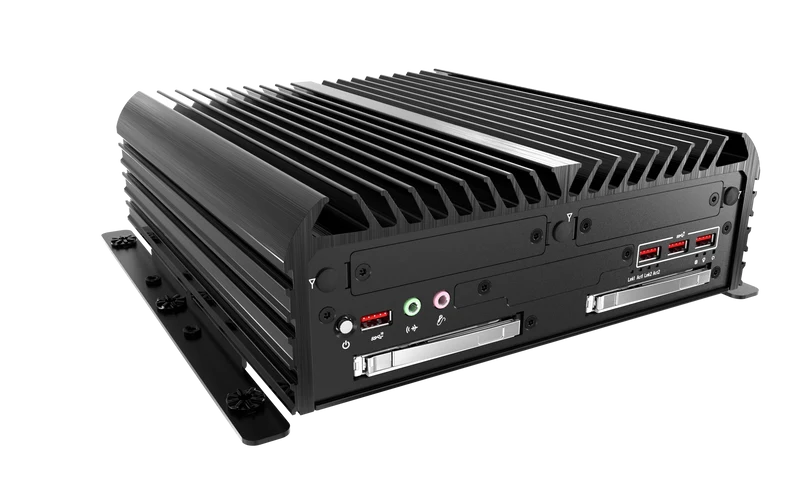

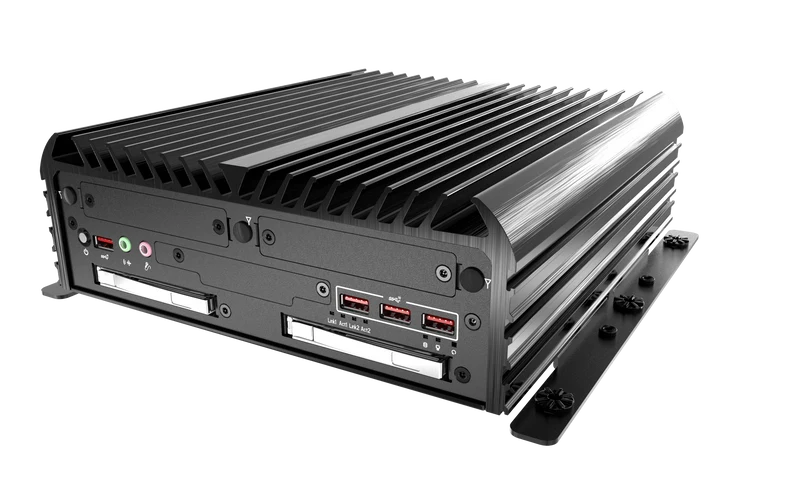

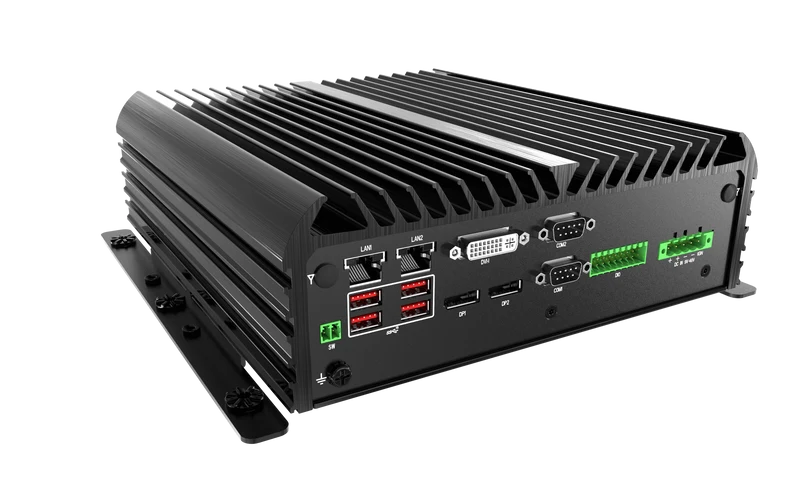

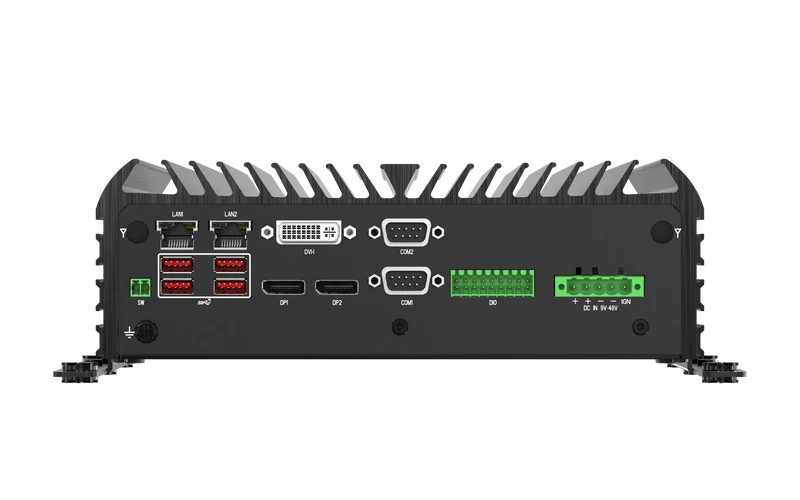

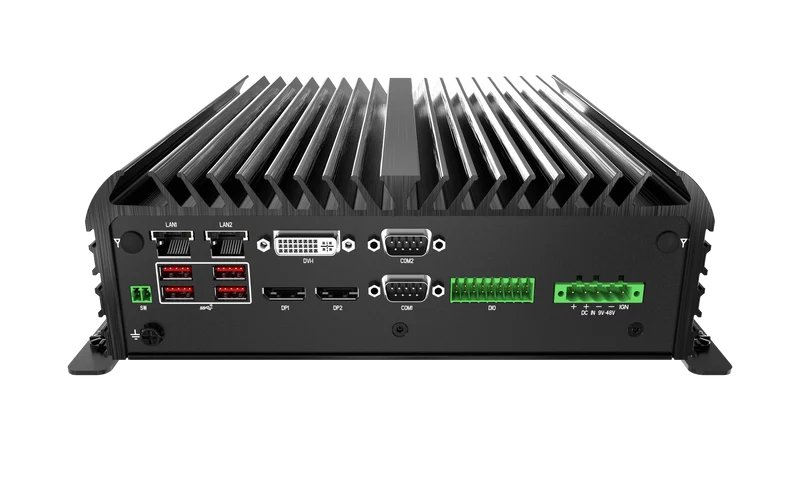

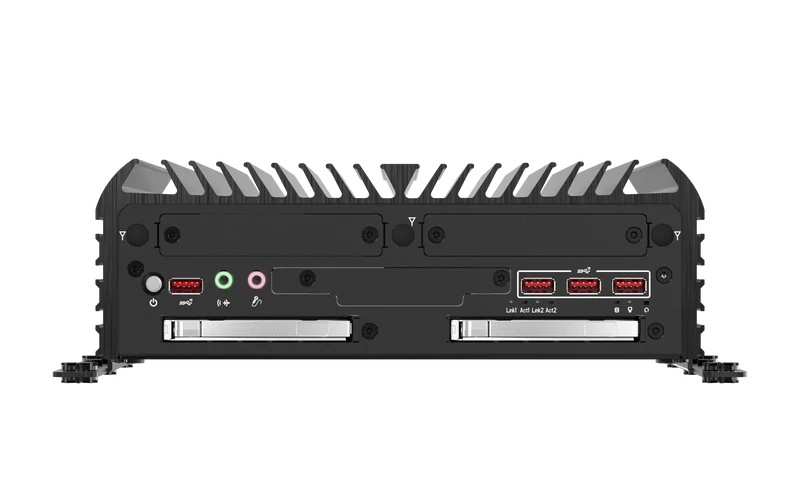

ACO-6000-RPL Railway & In-Vehicle Computer with LGA 1700 for Intel® Core™ (Series 2)/14th/13th/12th Gen Processors & W680E PCH
0,00 €
Descrizione
- Intel® Core™ Processors Series 2 and 14th/13th/12th Gen Series, LGA1700
- Intel® W680E chipset
- 2x 262-pin DDR5 4800/5600 MT/s SODIMM. Max. up to 96GB (ECC and Non-ECC)
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE
- 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 3x 2.5” SATA SSD Bays (2x hot-swappable, 1x internal)
- 1x mSATA, 1x M.2 B Key (2242/3042/3052) for AI/Storage/4G/5G
- 1x M.2 E Key (2230) for Wi-Fi/BT
- 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.0 Gen 1 (internal)
- 8x DI + 8x DO with isolation
- 12 to 48VDC Power Input (AT/ATX Mode Support)
- Wide Operating Temperature -25°C to 70°C (35W/65W CPU)
- TPM 2.0 Supported
- Power Ignition Management
