Fornitore: BVS
BVS-190M5T 19 Inch Open Frame Industrial Touch Monitor 1280x1024 Capacitive Multi-Touch Screen Embedded Display for 19" Rack-Mount Control Panels CNC Machinery Industrial Workstations and Process Control Systems
Descrizione
Overview &Key Features
【Model】BVS-M5T
【Item】BVS 15-27 Inch Embedded Industrial Display Open Frame Monitor Touch Screen
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Parameter】
| Model | BVS-M5T |
|---|---|
| Material | Metal |
| Size | 15/17/19/21.5/22/23.8/27 inch |
| LCD Type | TFT-LCD |
| Colors | 16.7M |
| Pixel Pitch (mm) | 0.264(H) × 0.264(V) |
| Brightness (nits) | 350 cd/㎡ |
| Contrast Ratio | 500:1 |
| Viewing Angle | 89/89/89/85 |
| Response Time | 30ms (Typ.)(Tr+Td) |

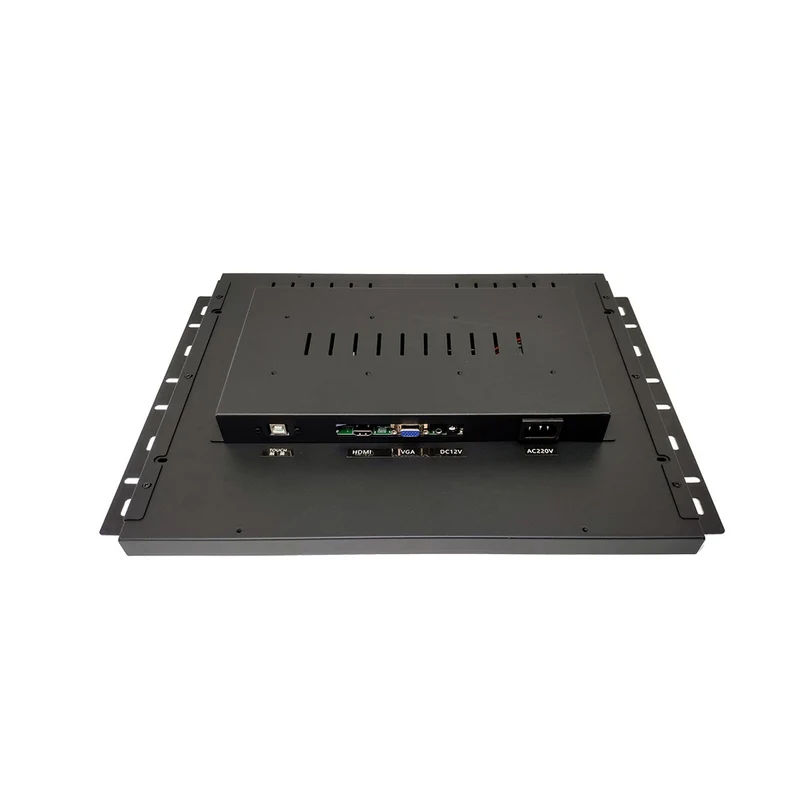

| Signal Input Ports | VGA 15-pin D-sub / Serial / HDMI |
| Power Supply | 220V |
| Power Consumption | ≤25W (Typical) / ≤35W (Max) |
| Other Functions | Auto adjustment, Brightness, Contrast, H/V position, Clock, Phase, Color, Language |
| Language | Chinese / English (Other languages supported) |
| Mounting Method | Open frame / Embedded |
| Touch Screen Type | Capacitive |
| Optional Touch Types | Capacitive / Infrared / No Touch |
| Touch Interface | USB / Serial / 3M RS232 |
| Certification | CCC |
| Warranty | 1 year |
| Packaging Size |
15'' : 46*12*39CM 17'' : 49*12*41 CM 18.5'' : 57*12*40CM 19'' : 55*12*47 CM 21.5'' : 62*12*39 CM 22'': 60*13*42CM |
| Application Fields | ATM, Self-service kiosk, Gaming machine, Rail transit, Industrial automation, Medical, Vending machine |
Product Gallery
Applications
OEM / ODM Customization
