Fornitore: BVS
BVS GW-A Fanless Industrial Mini PC, Intel J1900/J4125/N2840 Processor, Dual LAN, HDMI & VGA, Dual RS232 COM, Metal Embedded Computer for Industrial Automation
Descrizione
Overview &Key Features
【Model】BVS-GW-A

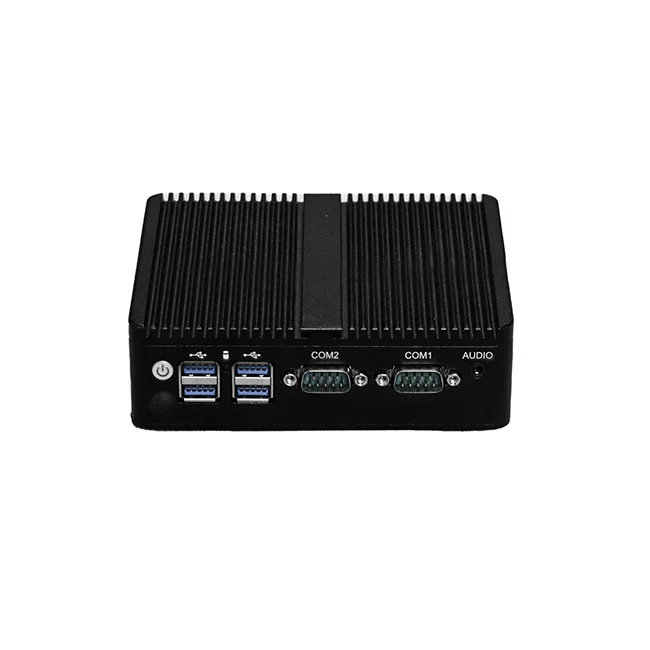

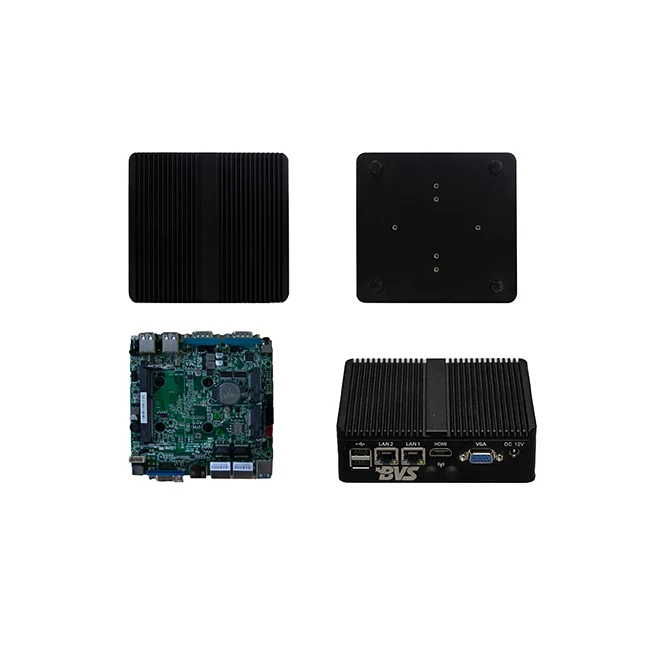

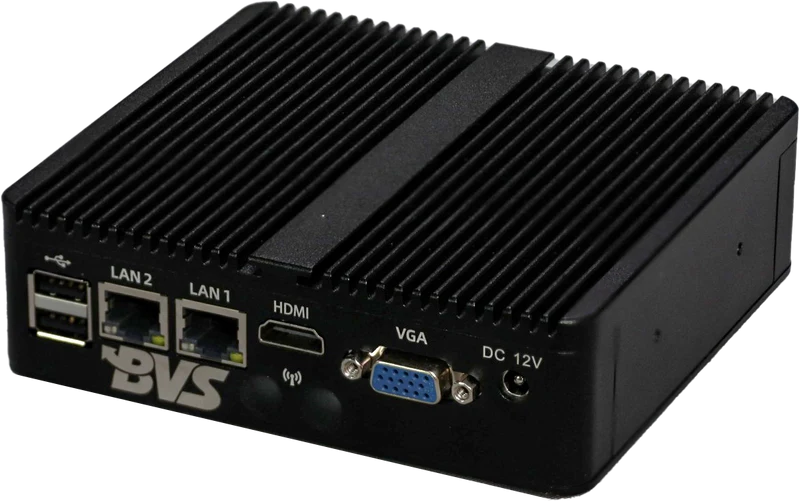

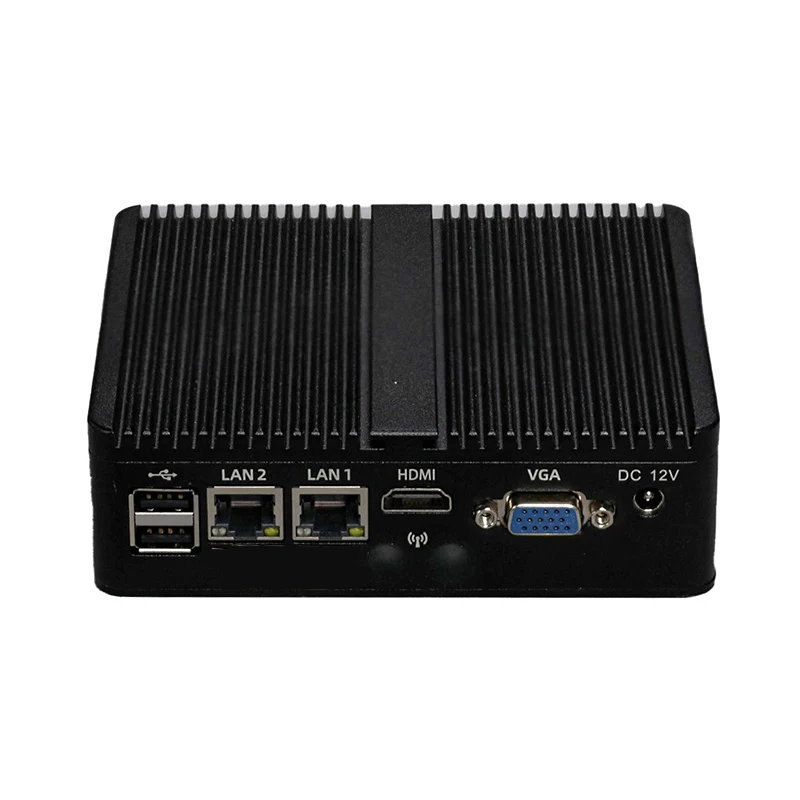

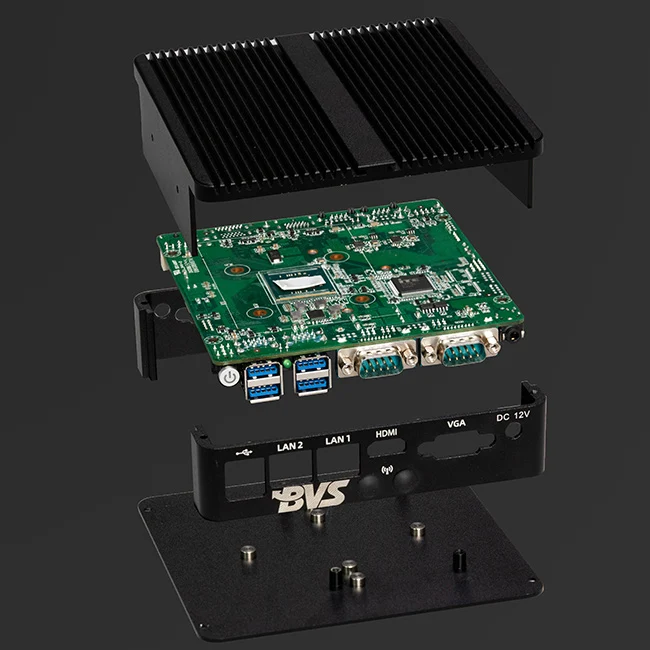

【Item】BVS GW-A is a compact fanless industrial mini PC designed for reliable operation in industrial and commercial environments. Available with Intel J1900, J4125, or N2840 processors, it delivers stable computing performance with a maintenance-free fanless cooling design. The rugged black metal enclosure supports efficient passive heat dissipation. With dual LAN, HDMI, VGA, USB and dual RS-232 COM ports, GW-A offers flexible connectivity for industrial automation, machine control, digital signage, networking, monitoring systems, and other embedded applications. Its compact design makes it suitable for space-constrained installations requiring dependable 24/7 operation.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Paramater List】
| Standard | optional | ||||||||||
| System | CPU | Intel Celeron Processor J4125 (4M Cache, up to 2.70 GHz) | / | ||||||||
| Frequency | 2.70 GHz | / | |||||||||
| RAM | 8GB-DDR3 | 4GB-DDR3 | |||||||||
| SSD | 128G | 64G/256G | |||||||||
| Operating system | Windows 7 | Windows 10 / Linux | |||||||||
| Network | Wi-Fi | / | Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth | |||||||||
| Interfaces | USB | 6 | |||||||||
| COM | 2(RS232) | RS485 | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 2 | 1 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | Phoenix terminal | |||||||||
| Power | 1 | Phoenix terminal | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | / | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | / | （Rear Flush Panel Mount） | |||||||||
| Stand Mount | / | Desktop Stand Mount | |||||||||
| Packaging | Net weight | 0.68kg | / | ||||||||
| Gross weight | 1.259kg | / | |||||||||
| Product dimensions | 190*126*55mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 202*172*120（L*W*H） | / | |||||||||
| Carton Dimension | 635*215*365mm（L*W*H）(Ctn Qty:10 pcs) | / | |||||||||
| Other functions | POE | NO | / | ||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
OEM / ODM Customization
