Fornitore: BVS
BVS GW-R High Performance Industrial Mini PC, Intel Core i5 6th Gen, Fanless Aluminum Alloy Computer, Windows/Linux Support, WiFi Hotspot, Dual LAN & RS232 COM for Industrial Automation
Descrizione
Overview &Key Features
【Model】BVS-GW-R
【Item】

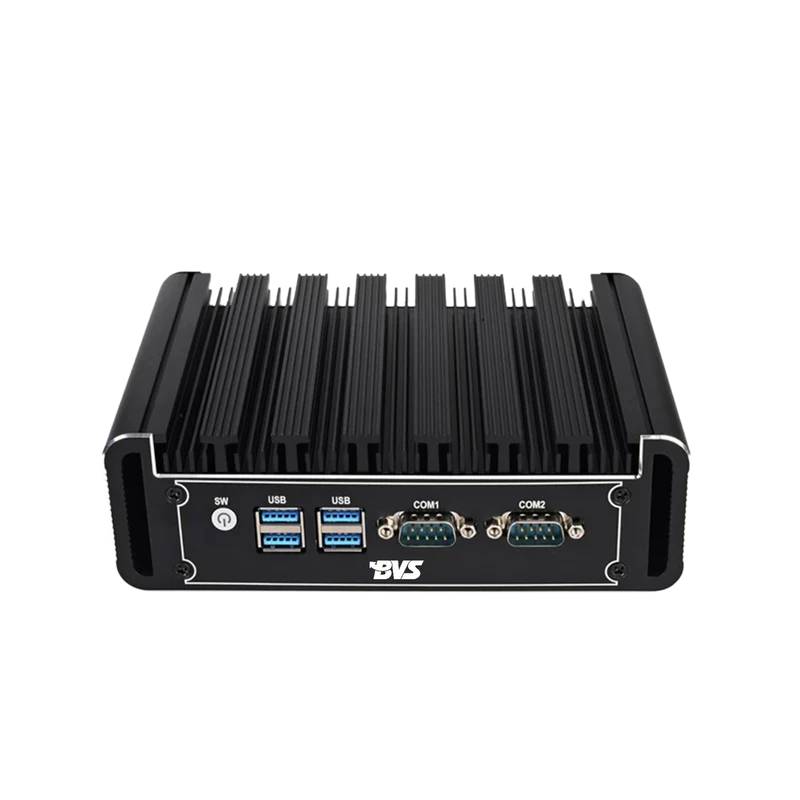

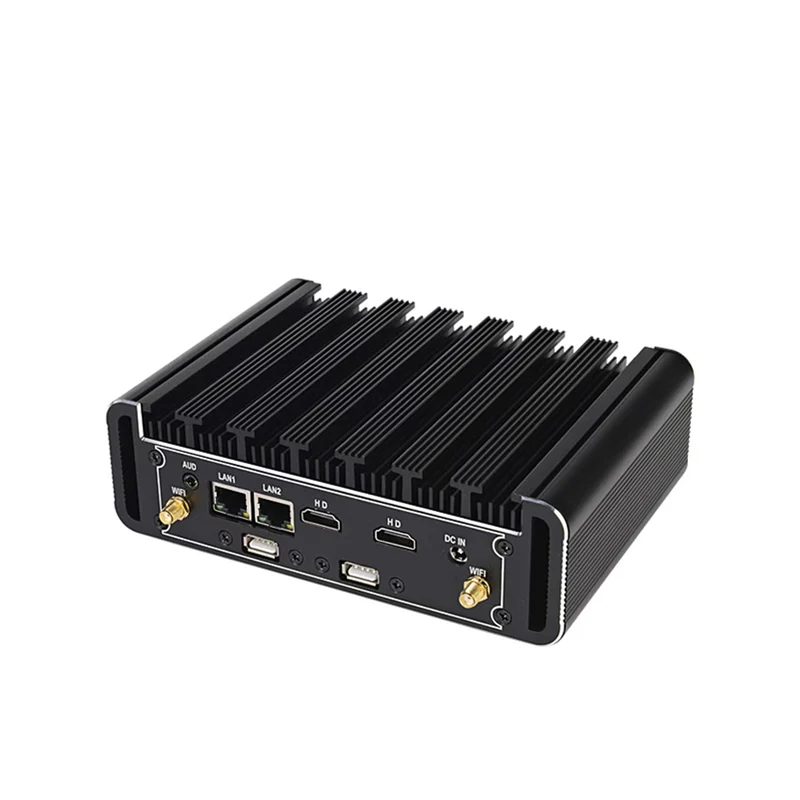

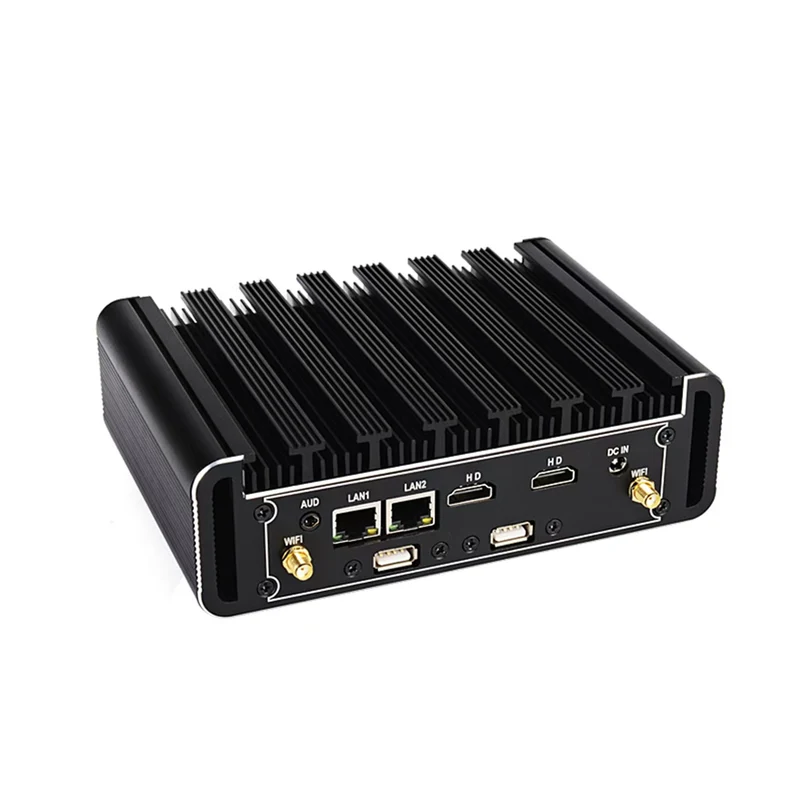

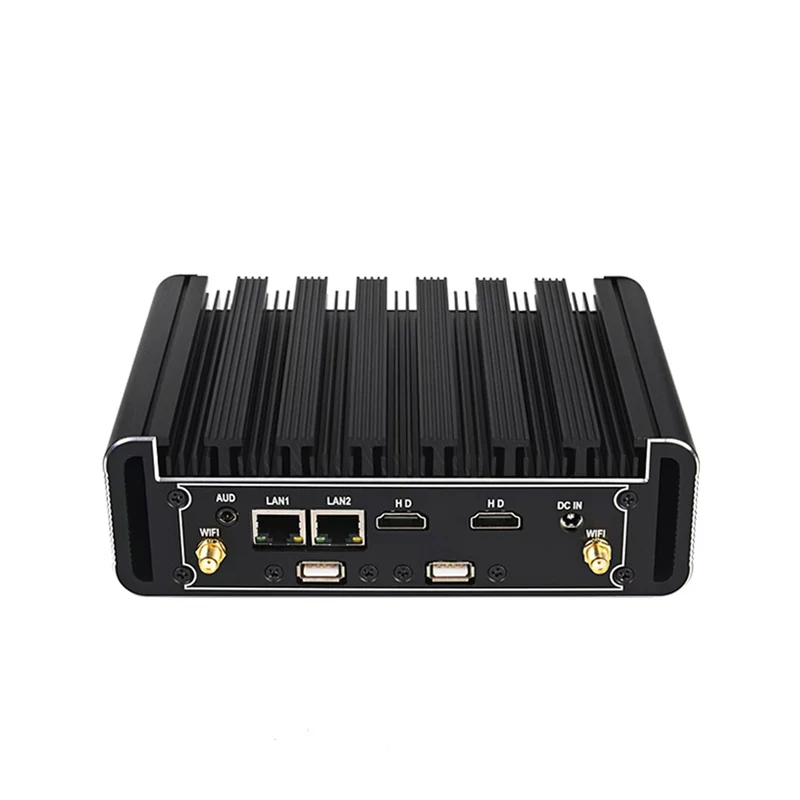

BVS GW-R is a high-performance industrial mini PC featuring a durable black aluminum alloy chassis and a large passive heatsink for efficient fanless cooling. Powered by an Intel Core i5 6th Gen processor, it provides reliable computing performance for industrial and embedded applications. The system supports Windows and Linux, with dual LAN, USB, dual RS232 COM, HDMI/HDMI output and WiFi connectivity for flexible integration. Its WiFi hotspot function enables convenient wireless networking, making GW-R suitable for industrial automation, edge computing, machine control, smart manufacturing, networking gateways, and other demanding applications.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Paramater List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-6200U | / | ||||||||
| Total Cores | 2 Cores 4 Threads | / | |||||||||
| Frequency | 2.3 GHz, Turbo 2.8 GHz (2M Cache) | / | |||||||||
| RAM | 8GB DDR4 | 4GB / 16GB / 32GB | |||||||||
| SSD | 128GB | 256GB / 512GB / 1T | |||||||||
| Operating system | Windows 10 | Windows 11 / Linux | |||||||||
| Network | Wi-Fi | / | 2.4G+5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||
| Interfaces | USB | 8 | |||||||||
| COM | 2*(RS232) | RS485 | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 2 | 2 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | Phoenix terminal | |||||||||
| Power | 1 | Phoenix terminal | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/5A | / | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | / | （Rear Flush Panel Mount） | |||||||||
| Stand Mount | / | Desktop Stand Mount | |||||||||
| Packaging | Net weight | 1.219kg | / | ||||||||
| Gross weight | 1.89kg | / | |||||||||
| Product dimensions | 178*125*55mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 202*172*120mm（L*W*H） | / | |||||||||
| Carton Dimension | 635*215*365 （L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | POE | NO | / | ||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
