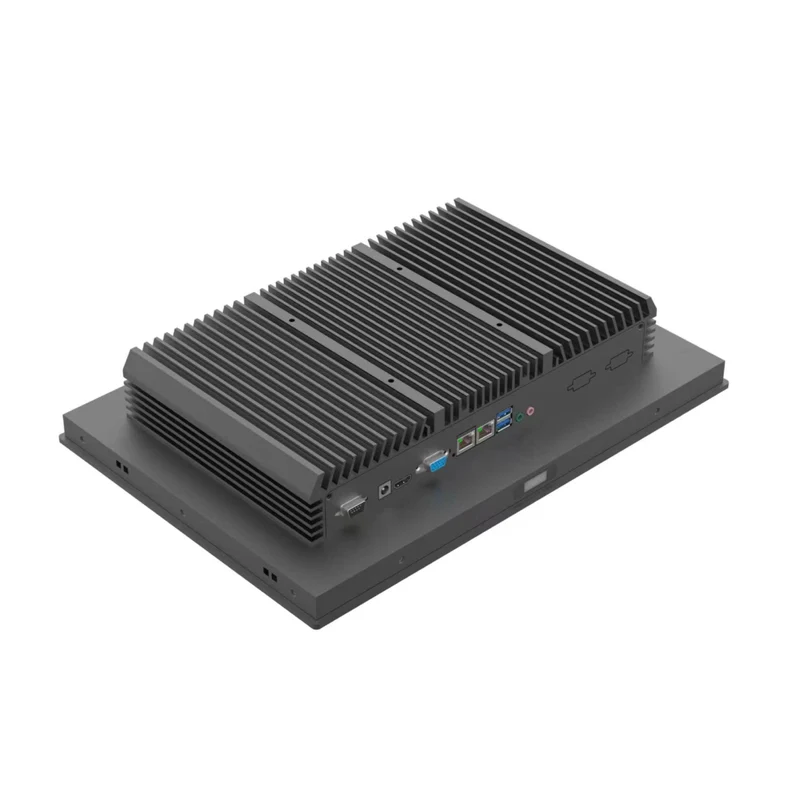

BVS-QG156WH 15.6-inch Industrial Panel PC, Intel Core i5 13th Gen, 8GB+128GB, 1920×1080 Capacitive Touch, Fanless Aluminum Case, Windows 11 for HMI & Machine Control

Overview &Key Features

【Model】BVS-QG156WH

【Item】

BVS-QG156WH is a rugged 15.6-inch widescreen industrial touch all-in-one PC built with a full corrosion-resistant black aluminum alloy housing, engineered for demanding factory and workshop environments. Equipped with 13th generation Intel processor paired with internal copper heat pipe cooling architecture, it delivers outstanding thermal performance to sustain long-duration heavy-load industrial operation without overheating. Featuring responsive 10-point capacitive touch, operators enjoy smooth, lag-free interaction for daily machine control and data entry.This panel comes with an integrated RFID / NFC reader to enable rapid staff identity authentication, access control and personnel login. It supports connection to barcode scanners for production batch verification and quality inspection workflows. The front camera is configurable at 2MP or 8MP, catering to video recording, on-site product visual checking and staff face verification. Supporting both VESA wall mounting and cabinet embedded installation, this industrial PC offers flexible deployment choices for production lines, quality control stations, factory access management and warehouse inventory operations.

【Notice】

For custom specifications or wholesale inquiries, please contact our sales team.

Payment Terms:

• Sample orders: 100% upfront

• Bulk orders: 30% deposit, 70% balance before shipment

Lead Times:

• Samples: 7 working days after payment confirmation

• Bulk orders: shipping schedule to be negotiated

Shipping:Freight costs are borne by the buyer. Contact us for a quote.

Warranty: 2-year standard warranty included.

【Parameter List】

Model	QG156WH
TouchScreen	10 Point
Size	15.6
Resolution	15.6''(1920*1080)
Screen scale	15.6''(16:9)
Brightness	300 cd/m2 (Typ.)(500/1000 optional)
CPU	Intel Core I5 12th(I3/I7 optional)
RAM	8GB(16GB optional)
ROM	128GB(256GB/512GB optional)
Network	2.4G-Wifi
	Bluetooth
	Ethernet
I/O Ports	USB x4
	LAN x1
	HD x1
	DC x1
	Line out x1
	MIC x1
	VGA x 1
	COM(RS232/RS485) x 2
Operating System	Windows 10(7/8/11 , Linux optional)
Power Adapter	12V, 5A
IP Grade	IP54
Work Temperature	-10℃～60℃
Packaging Size	15.6'' : 47.4*13.6*36.2 CM
OEM	CPU, Interfaces ,BT,WiFi,NFC ,Camera , Logo ,Appearance etc.
