Fornitore: BVS

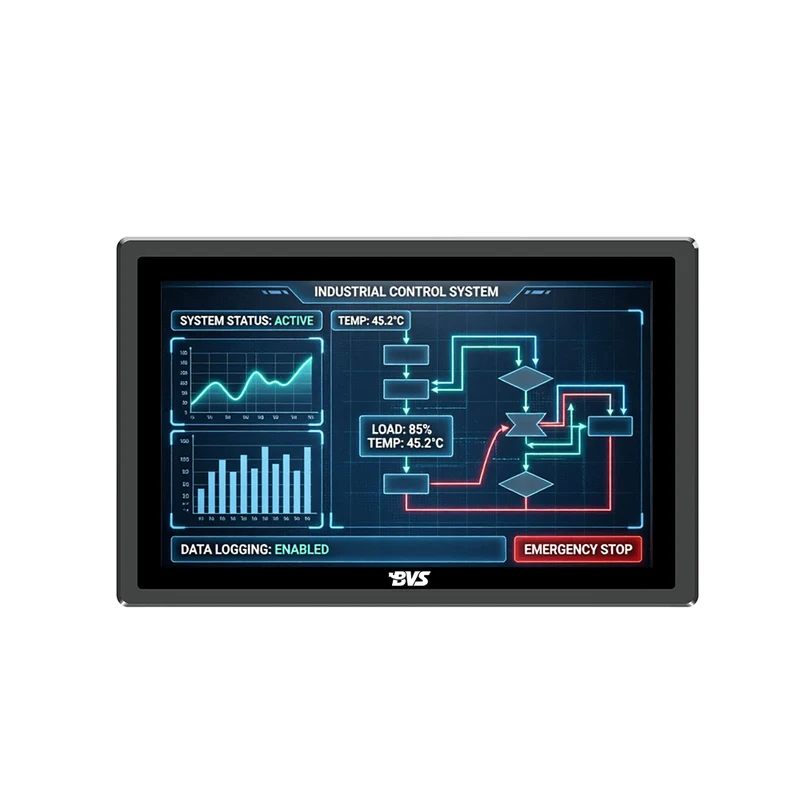

BVS-QG215WL 21.5-inch Embedded Industrial Panel PC, IP65 Front, Intel Core i5, 8GB+128GB, 1920×1080 Capacitive Touch, Fanless Aluminum Case, Windows 10 for HMI & Machine Control
Descrizione
Overview &Key Features
【Model】BVS-QG215WL
【Item】

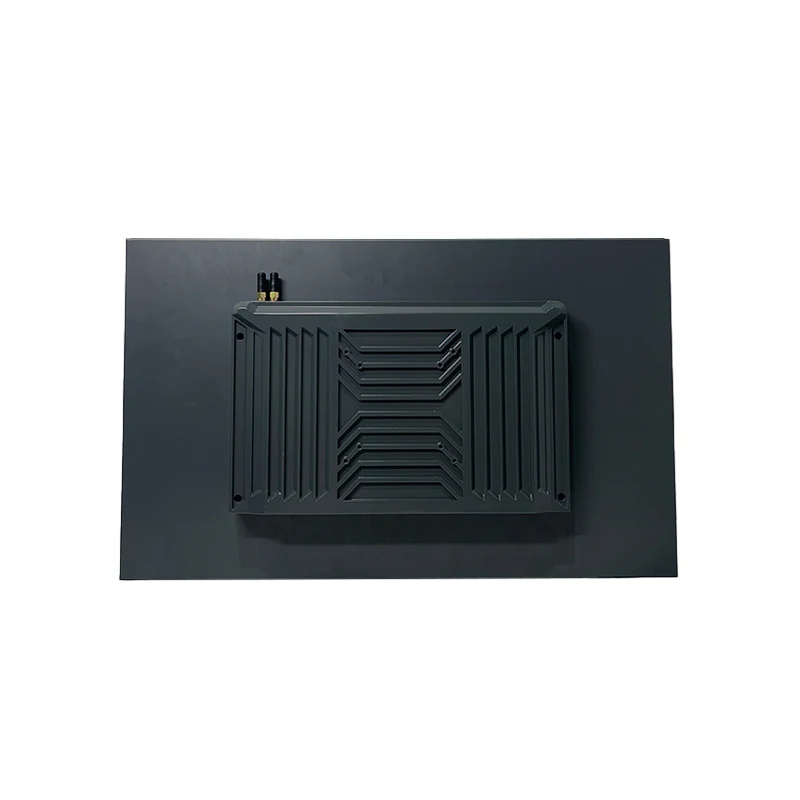

BVS‑QG‑215‑E is a large‑format 21.5‑inch Full‑HD external embedded industrial touch all‑in‑one PC. Its front bezel contains no pre‑drilled fixing holes. The whole unit is pushed into the wall or cabinet opening from outside and held in place by the frame shoulder. This flexible embedded mode meets large‑screen monitoring demands without strict seamless cabinet processing. Running on the 6th‑generation Intel Core i5 processor with Windows and Linux support, it is a practical flagship large‑screen industrial HMI for intelligent factory transformation.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-4200U (4th Gen) | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 1.6 GHz (Up to 2.6 GHz) | / | |||||||||
| RAM | 8GB | 4GB / 8GB / 16GB | |||||||||
| SSD | 128GB | 64GB / 128GB / 256GB / 512GB | |||||||||
| Operating system | Windows 10 Pro | Windows 7 / Windows 11 / Linux | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1920*1080 | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) Full Viewing Angle | / | |||||||||
| Contrast ratio | 1000:1 | / | |||||||||
| Brightness | 250 cd/m2 | 300/500/1000 cd/m2 | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | / | Single-band / Dual-band | ||||||||
| Ethernet | 1 x Gigabit Ethernet | / | |||||||||
| BT | / | Bluetooth 5.0 | |||||||||
| 4G LTE | / | Mobile / Unicom / Telecom | |||||||||
| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | COM * 4 (Expandable) | / | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| TF card slot | / | / | |||||||||
| LAN | 1 | Customizable2* | |||||||||
| SIM-4G | / | Customizable1* | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Audio-In*1 / Audio-Out*1 | Built-in Speaker | ||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A External Power Adapter | / | ||||||||
| Temperature | Working temperature | -10°C ~ 60°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 5.15kg | / | ||||||||
| Gross weight | 6.6kg | / | |||||||||
| Product dimensions | 552*345*64mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 595*431*115mm（L*W*H） | / | |||||||||
| Carton Dimension | 610*600*450（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | / | Customizable | ||||||||
| POE | / | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
