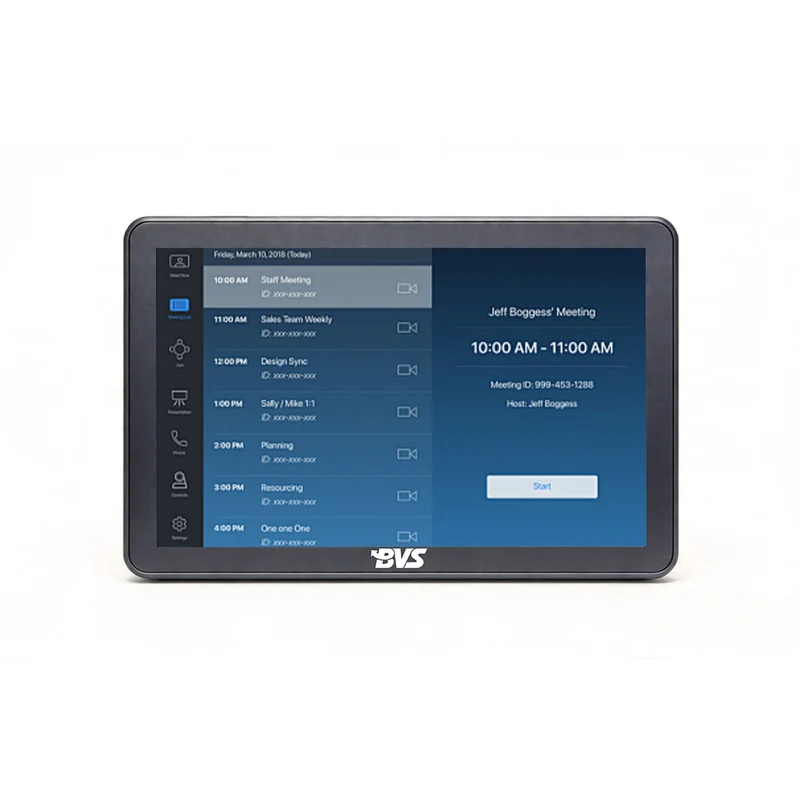

BVS-QR101 V3.0 10.1'' Android PoE Touch Panel – Metal Black Housing, LAN + RS485 + OTG + TypeC, Smart Meeting & Industrial HMI
Descrizione
Overview &Key Features
【Model】BVS-QR101 V3.0
【Item】
BVS-QR101 V3.0 10.1" Android PoE Touch Panel – Wall-Mount Controller for Smart Buildings

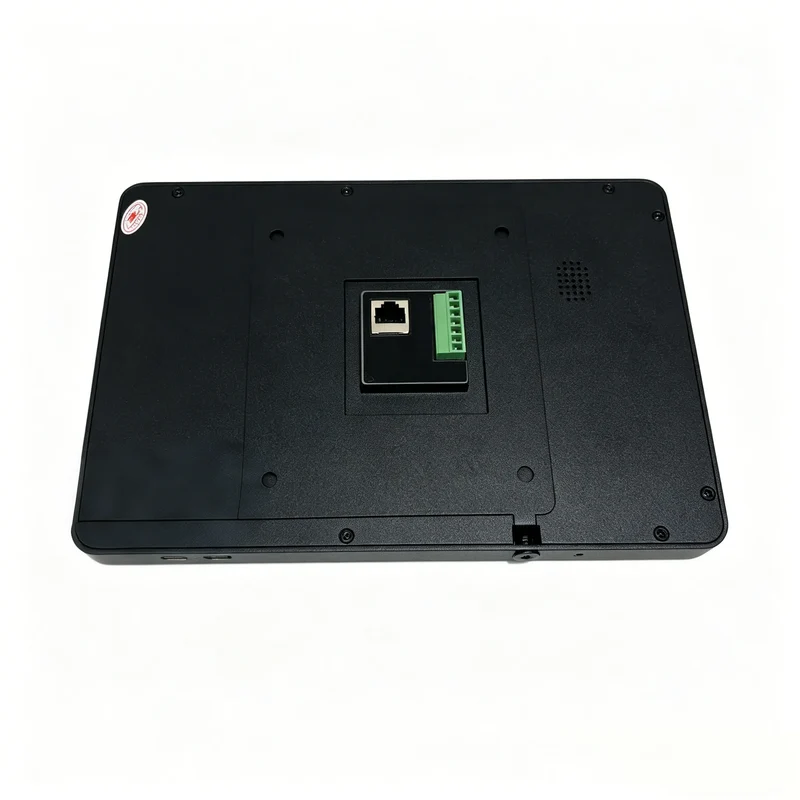

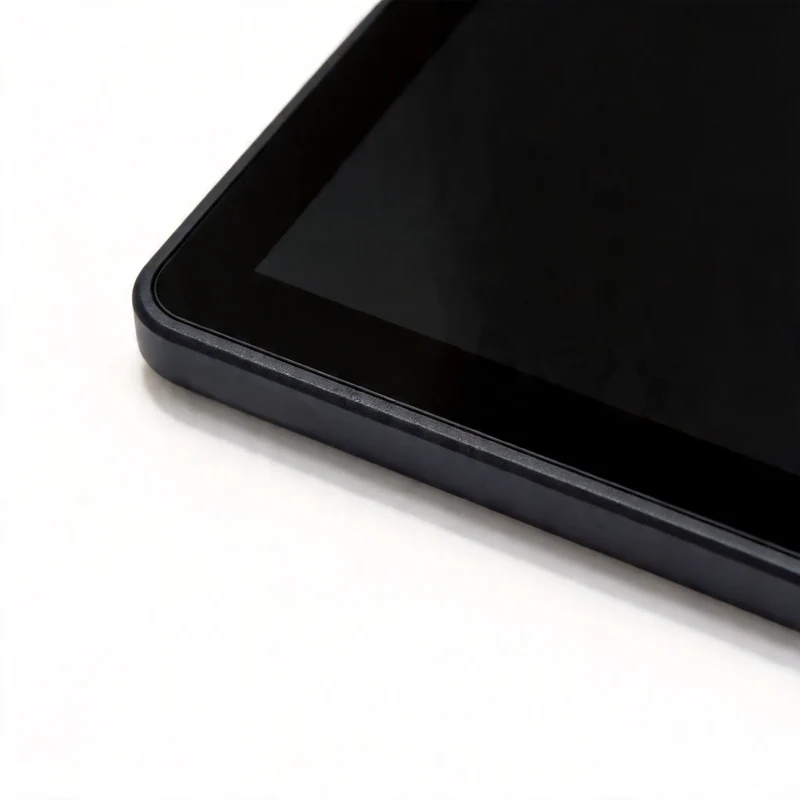

Designed for smart home control, building management, industrial HMI, meeting room booking, and IoT automation projects, the BVS-QR101 V3.0 features a 10.1" Android PoE touch panel in a sleek black metal housing.PoE power enables single-cable installation. Rich interfaces include LAN, RS485, OTG, and Type-C, providing flexible connectivity for professional wall-mount deployments.Standard 2MP front camera, upgradable to 5MP or 8MP for enhanced clarity when needed.Optional built-in 4G LTE module available for RK3288, RK3566, RK3568, RK3576, and RK3588 platforms.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Model | QR101 V3.0 |
| TouchScreen | 10 Point |
| Material | Metal |
| Size | 10.1'' |
| Resolution | 1280*800 |
| Screen scale | 10.1''(4:3) |
| Brightness | 250 cd/m2 (Typ.)(500/1000 optional) |
| CPU | RK3566 (RK3568/RK3576 optional) |
| Operating System | Android 11(12/13/14 optional) |
| RAM | 2GB(4GB/8GBoptional) |
| ROM | 32GB(64GB/128GB optional) |
| Network | 2.4G-Wifi |
| Bluetooth | |
| Ethernet | |
| I/O Ports | OTG x 1 |
| LAN x 1 | |
| Type-C x 1 | |
| Interface terminal x 1 | |
| Speaker | 3W x 2 |
| Power | POE power supply |
| OEM | CPU, Interfaces ,BT,WiFi,NFC ,Camera , Logo ,Appearance ,POE etc. |
Applications
OEM / ODM Customization
