BVS-VR215 21.5" Android Touch Panel PC, 10Point Capacitive, RK3566, 2GB+32GB, 1920×1080 Full HD,2MP Std Optional 5MP/8MP Camera Industrial HMI for Equipment Control & Security System

Overview &Key Features

【Model】BVS-VR215

【Item】

Featuring a 21.5" 10-point capacitive touchscreen, the BVS-VR215 is powered by the RK3566 processor with 2GB RAM and 32GB storage, delivering reliable performance for equipment control systems and industrial management applications.The latest upgraded model now includes built-in Wi-Fi with hotspot functionality. An optional 2MP camera (upgradable to 5MP or 8MP) supports security management and access control integration.Ideal for Android-based kiosks, POS systems, and embedded industrial panels.Optional built-in 4G LTE module available for RK3288, RK3566, RK3568, RK3576, and RK3588 platforms.Optional Type-C

【Notice】

For custom specifications or wholesale inquiries, please contact our sales team.

Payment Terms:

• Sample orders: 100% upfront

• Bulk orders: 30% deposit, 70% balance before shipment

Lead Times:

• Samples: 7 working days after payment confirmation

• Bulk orders: shipping schedule to be negotiated

Shipping:Freight costs are borne by the buyer. Contact us for a quote.

Warranty: 2-year standard warranty included.

【Parameter List】

Model	VR215
TouchScreen	10 Point
Material	Plastic
Size	21.5 inch
Resolution	21.5'(1920*1080)
Screen scale	21.5''(16:9)
Brightness	250 cd/m2 (Typ.)(500/1000 optional)
CPU	RK3566 (RK3568/RK3576/RK3588 optional)
Operating System	Android 11(12/13/14 optional)
RAM	2GB(4GB/8GB/16GBoptional)
ROM	32GB(64GB/128GB/256GB optional)
Network	2.4G-Wifi
	Bluetooth
	Ethernet

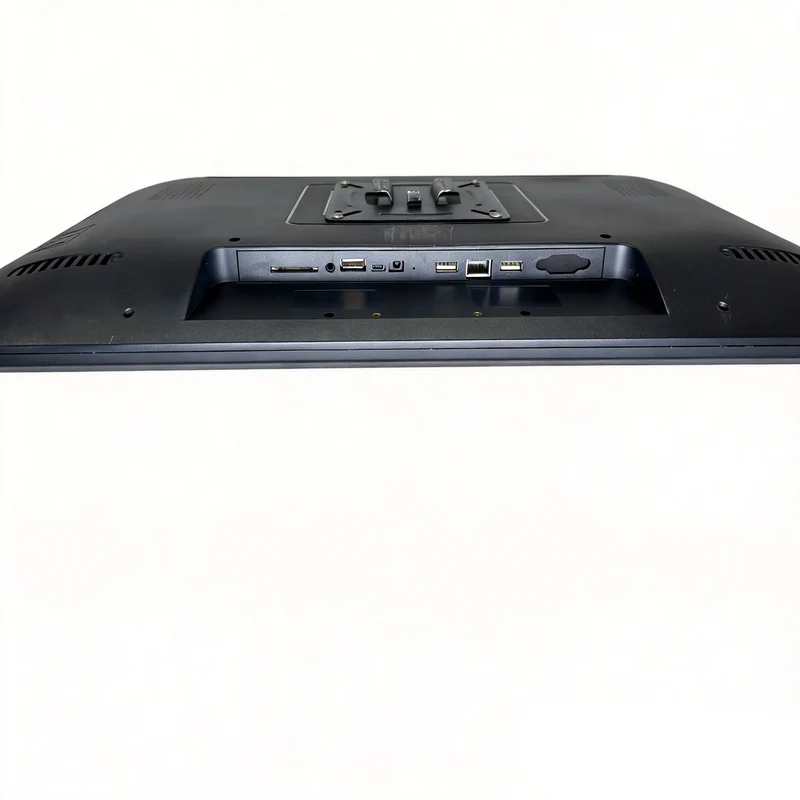

I/O Ports	USB x 2
	LAN x 1
	HD x 1
	DC x 1
	Audio x 1
	TF x 1(MAX 32G)
Camera	200W(500W optional)
Speaker	3W x 2
Power Adapter	12V, 3A
Work Temperature	20℃～70℃
Packaging Size	21.5'' : 59.7*17.5*45.5 CM
OEM	CPU, Interfaces ,BT,WiFi,NFC ,Camera , Logo ,Appearance ,POEetc.

Product Gallery

Applications

OEM / ODM Customization
