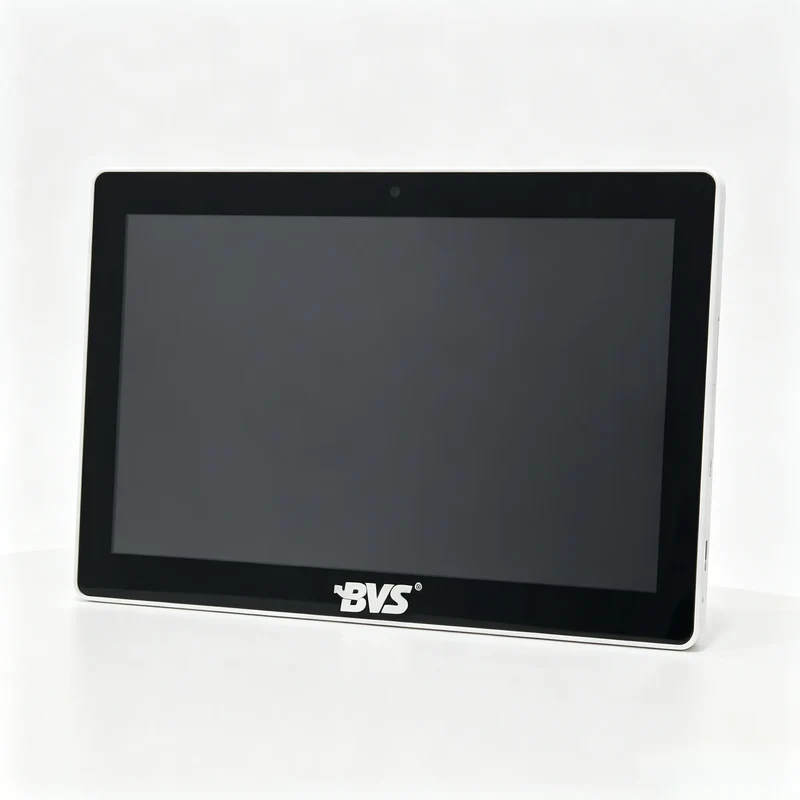

BVS-YL101 V3.0 Wall-Mounted Android Panel PC, 10.1'' Touch Display with LAN, SIM and GPIO Expansion

Overview &Key Features

【Model】BVS-YL101 V3.0

【Item】

BVS-YL101 V3.0 10.1" Android Medical Touch Panel – White ABS Housing for Healthcare

Designed specifically for medical and healthcare environments—including hospitals, clinics, rehabilitation centers, and laboratories—the BVS-YL101 V3.0 features a 10.1" Android touch panel in a clean white ABS housing.Rich I/O options include LAN, SIM, OTG, 12V DC power input, Optional Type-C and two GPIO interfaces, offering flexible integration for patient bedside terminals, nurse station dashboards, check-in kiosks, and customer feedback terminals.Optional built-in 4G LTE module available for RK3288, RK3566, RK3568, RK3576, and RK3588 platforms.

【Notice】

For custom specifications or wholesale inquiries, please contact our sales team.

Payment Terms:

• Sample orders: 100% upfront

• Bulk orders: 30% deposit, 70% balance before shipment

Lead Times:

• Samples: 7 working days after payment confirmation

• Bulk orders: shipping schedule to be negotiated

Shipping:Freight costs are borne by the buyer. Contact us for a quote.

Warranty: 2-year standard warranty included.

【Parameter List】

Category	Item	BVS-YL101 V3.0 Specification
Specification	CPU	RK3566
	RAM	2GB
	Storage	32GB
	Operating system	Android 11
Display	Size	10.1 inch capacitive touch
	Resolution	1280 × 800
	Brightness	250–300 cd/m2 (typical, if applicable)
Interfaces	Network	1 × LAN (RJ45)
	USB	1 × OTG
	Cellular	1 × SIM card slot (for 4G/LTE module if available)
	GPIO	2 × GPIO interfaces
	Power input	1 × 12V DC jack
Environment	Operating temperature	0–50 ℃
	Storage temperature	20–60 ℃
Certification	Compliance	CE, FCC, RoHS,ISO9001,ISO14001,etc.
Package contents	Standard accessories	Device, wall-mount kit, power adapter, screws, manual
Customization	OEM/ODM options	Housing color, logo, memory, interfaces, firmware
