BVS-ZR133 V1.0 13.3" Android touch screen panel pc RK3288 2GB+32GB，HD,LAN,OTG interfaces Rechargeable Battery Medical Test Terminal

Overview &Key Features

【Model】BVS-ZR133V1.0

【Item】

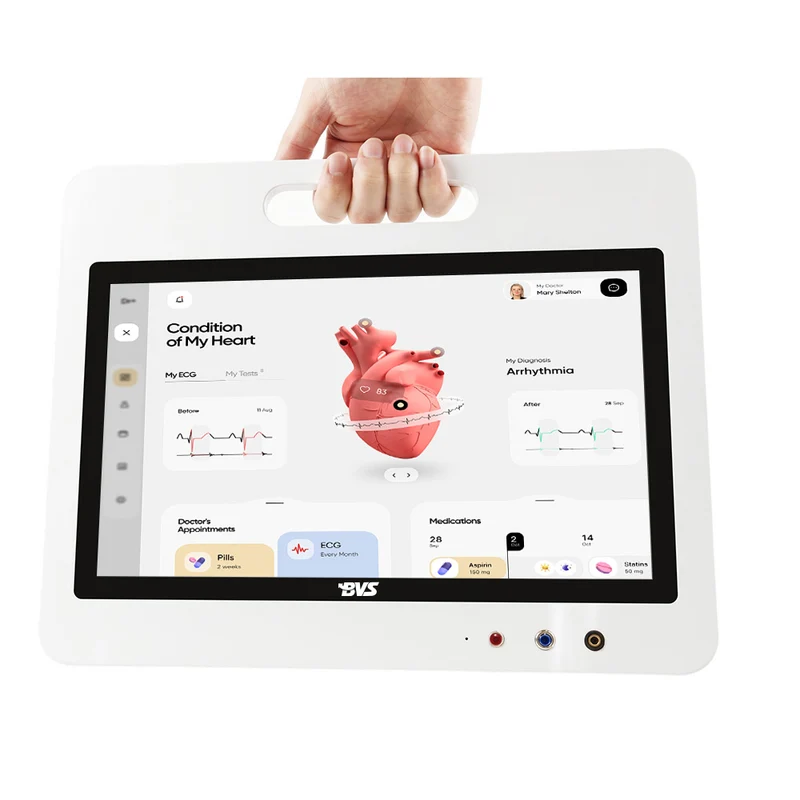

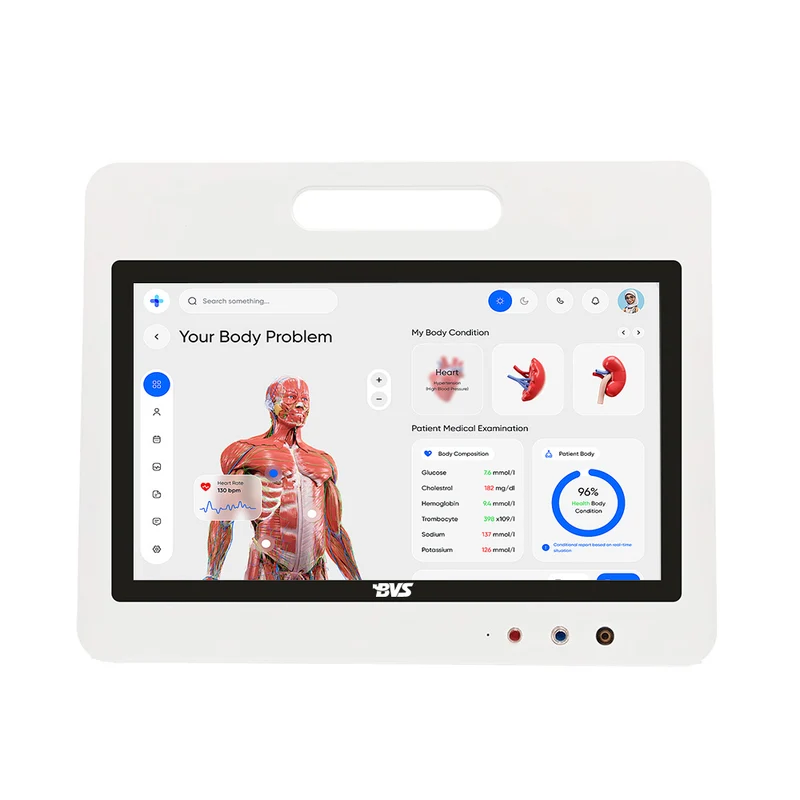

13.3" Portable Handheld Android Panel PC – RK3288 Medical Test Terminal

Powered by RK3288 with 2GB RAM and 32GB storage, this 13.3" lightweight touch panel PC features a built-in rechargeable battery for true mobile operation. Ergonomic hand-carry design makes it ideal for hospital lab testing, mobile medical inspections, and portable industrial data collection.Rich I/O ports include LAN, HDMI, TF card slot, dual USB, OTG, Type-C and DC power input—supporting flexible data transmission and expansion. The latest upgraded model now includes Wi-Fi with hotspot functionality.Standard 2MP front camera, upgradable to 5MP or 8MP for higher clarity when needed.Optional built-in 4G LTE module available for RK3288, RK3566, RK3568, RK3576, and RK3588 platforms.

【Notice】

For custom specifications or wholesale inquiries, please contact our sales team.

Payment Terms:

• Sample orders: 100% upfront

• Bulk orders: 30% deposit, 70% balance before shipment

Lead Times:

• Samples: 7 working days after payment confirmation

• Bulk orders: shipping schedule to be negotiated

Shipping:Freight costs are borne by the buyer. Contact us for a quote.

Warranty: 2-year standard warranty included.

【Parameter List】

Category	Item	BVS-ZR133 V1.0
Specification	CPU	RK3288(RK3566/3568/3576/3572... optional)
	RAM	2GB (4GB optional)
	Storage	32GB (64/128GB optional )
	Operating system	Android 9(11/12/13/14 optional)
Display	Size	13.3 inch capacitive touch
	Resolution	1920*1080
	Brightness	250–300 cd/m2 (typical, if applicable)

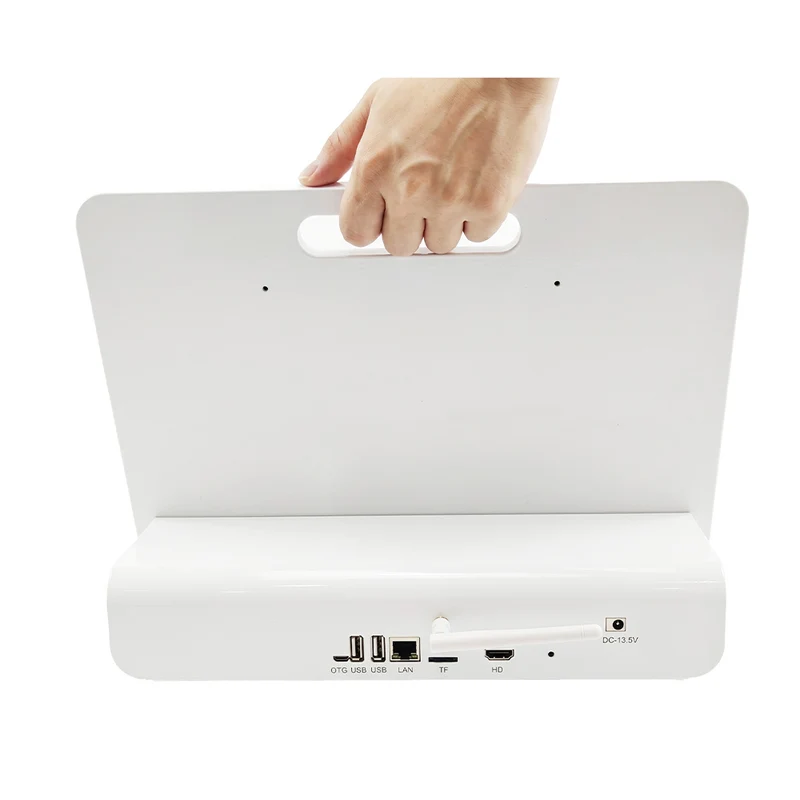

Interfaces	Network	1 × LAN (RJ45)
	OTG	1X OTG
	USB	2 X USB
	TF	1 X TF
	HD	1 × HD interfaces
	Power input	1 × 13.5V DC jack
Environment	Operating temperature	-10℃–60 ℃
	Storage temperature	20–70 ℃
Certification	Compliance	CE, FCC, RoHS,ISO9001,ISO14001,etc.
Package contents	Standard accessories	Device, power adapter, screws, manual
Customization	OEM/ODM options	Housing color, logo, memory, interfaces, firmware

Product Gallery

Applications

OEM / ODM Customization
