Fornitore: BVS
BVS‑QG‑156NL 15.6 Inch Widescreen Flush Embedded Industrial Touch Panel PC, Seamless Flat Front, 6th Gen Intel Core i5, Windows Linux Monitoring Workstation
Descrizione
Overview &Key Features
【Model】BVS-QG156NL
【Item】

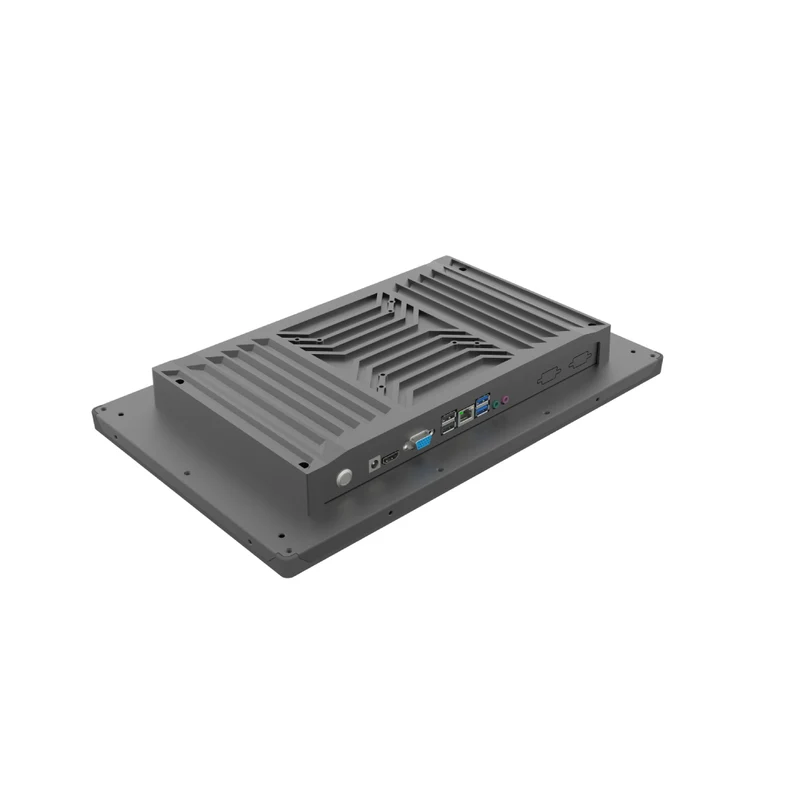

BVS‑QG‑156NL is a widescreen seamless flush‑mount industrial touch all‑in‑one PC with a smooth gap‑free aluminum front panel. The 15.6‑inch wide‑view display delivers expanded multi‑window space for real‑time trend curves and production data dashboards. Once embedded into the cabinet, the flat front prevents dust and liquid residue buildup, ideal for high‑standard smart manufacturing workshops. The 6th‑generation Intel Core i5 processor supports Windows and Linux for stable multi‑task industrial monitoring.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-4200U (4th Gen) | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 1.6 GHz (Up to 2.6 GHz) | / | |||||||||
| RAM | 8GB | 16GB | |||||||||
| SSD | 128GB | 256GB / 512GB | |||||||||
| Operating system | Windows 10 Pro | Windows 11 / Linux | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1920*1080 | / | |||||||||
| Viewing angle | Ultra-Wide / Full Viewing Angle | / | |||||||||
| Contrast ratio | 1000:1 | / | |||||||||
| Brightness | 220cd/m2 | 220 - 1000 cd/m2 | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | / | Single-band / Dual-band | ||||||||
| Ethernet | 1 x Gigabit Ethernet | / | |||||||||
| BT | / | Bluetooth 5.0 | |||||||||
| 4G LTE | / | Mobile / Unicom / Telecom | |||||||||
| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | COM * 4 (Expandable) | / | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| TF card slot | / | / | |||||||||
| LAN | 1 | Customizable2* | |||||||||
| SIM-4G | / | Customizable1* | |||||||||
| DC-IN | 1 | / | |||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A External Power Adapter | / | ||||||||
| Temperature | Working temperature | -10°C ~ 60°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 2.6kg | / | ||||||||
| Gross weight | 4kg | / | |||||||||
| Product dimensions | 398*247*53mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 474*136*322mm（L*W*H） | / | |||||||||
| Carton Dimension | 703*495*342（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | / | Customizable | ||||||||
| POE | / | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
Product Gallery
Applications
OEM / ODM Customization
