Fornitore: BVS

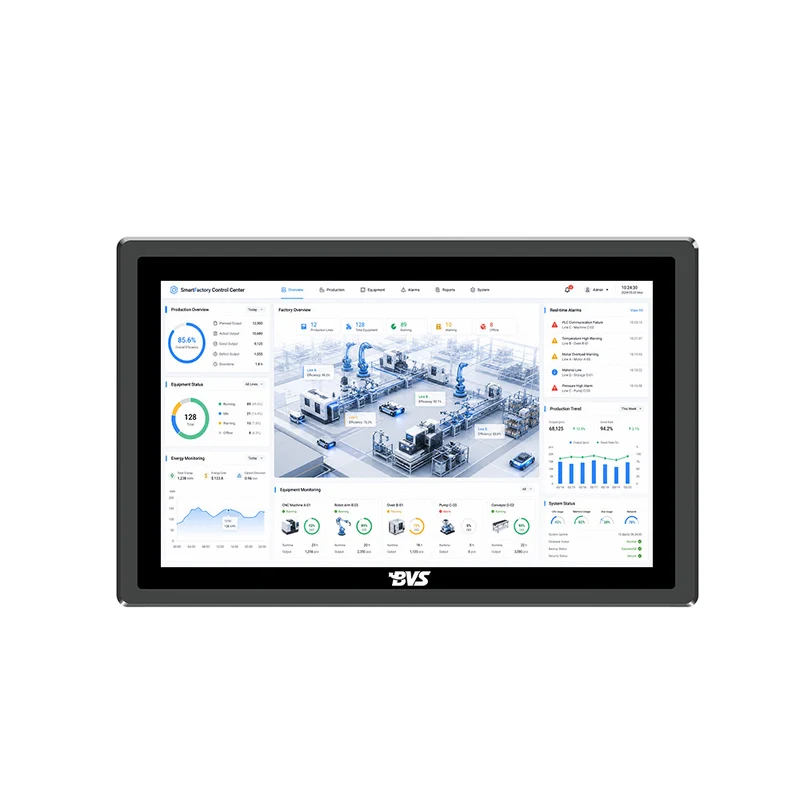

BVS‑QG‑156WL 15.6 Inch Widescreen External Bezel Industrial Touch PC, Front‑Flange Mount HMI, 6th Gen Intel Core i5, Windows Linux Embedded Computer
Descrizione
Overview &Key Features
【Model】BVS-QG156WL
【Item】
BVS‑QG‑156WL comes with a raised external front bezel for simple front‑screw installation. This 15.6‑inch widescreen industrial touch workstation is designed for mid‑range factory transformation, eliminating the requirement for precision cabinet milling work. Equipped with the 6th Gen Intel Core i5 processor, it runs Windows and Linux reliably to visualize production statistics and equipment status on retrofitted automation lines. The thick front bezel improves structural durability for heavy‑duty factory environments.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-4200U (4th Gen) | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 1.6 GHz (Up to 2.6 GHz) | / | |||||||||
| RAM | 8GB | 16GB | |||||||||
| SSD | 128GB | 256GB / 512GB | |||||||||
| Operating system | Windows 10 Pro | Windows 7/Windows 11 / Linux | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1920*1080 | / | |||||||||
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) Full Viewing Angle | / | |||||||||
| Contrast ratio | 1000:1 | / | |||||||||
| Brightness | 220cd/m2 | 220 - 1000 cd/m2 | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | / | Single-band / Dual-band | ||||||||
| Ethernet | 1 x Gigabit Ethernet | / | |||||||||
| BT | / | Bluetooth 5.0 | |||||||||
| 4G LTE | / | Mobile / Unicom / Telecom | |||||||||

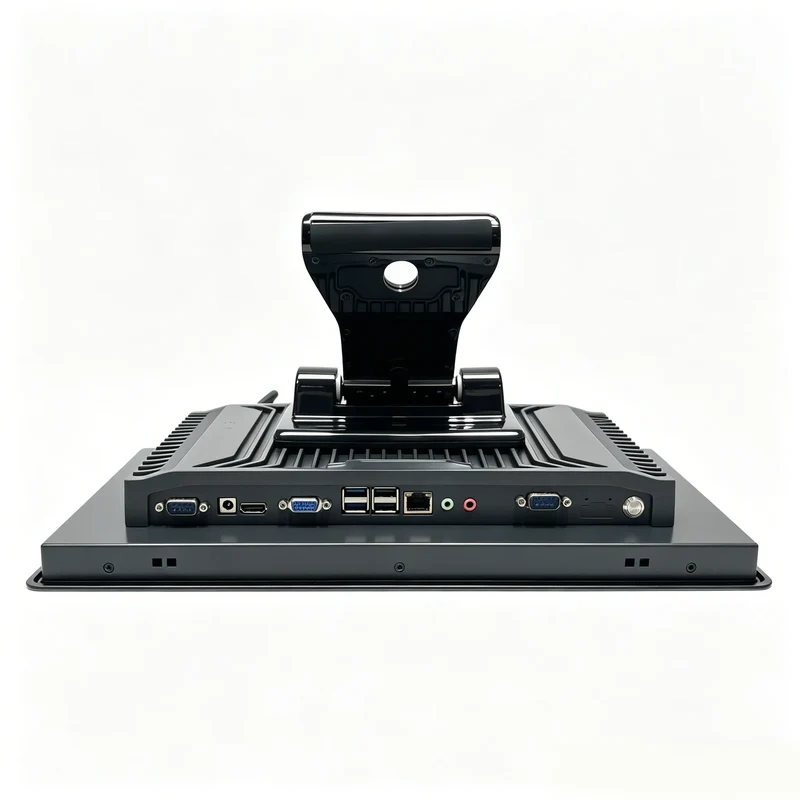

| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | COM * 4 (Expandable) | / | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| TF card slot | / | / | |||||||||
| LAN | 1 | Customizable2* | |||||||||
| SIM-4G | / | Customizable1* | |||||||||
| DC-IN | 1 | / | |||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A External Power Adapter | / | ||||||||
| Temperature | Working temperature | -10°C ~ 60°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||

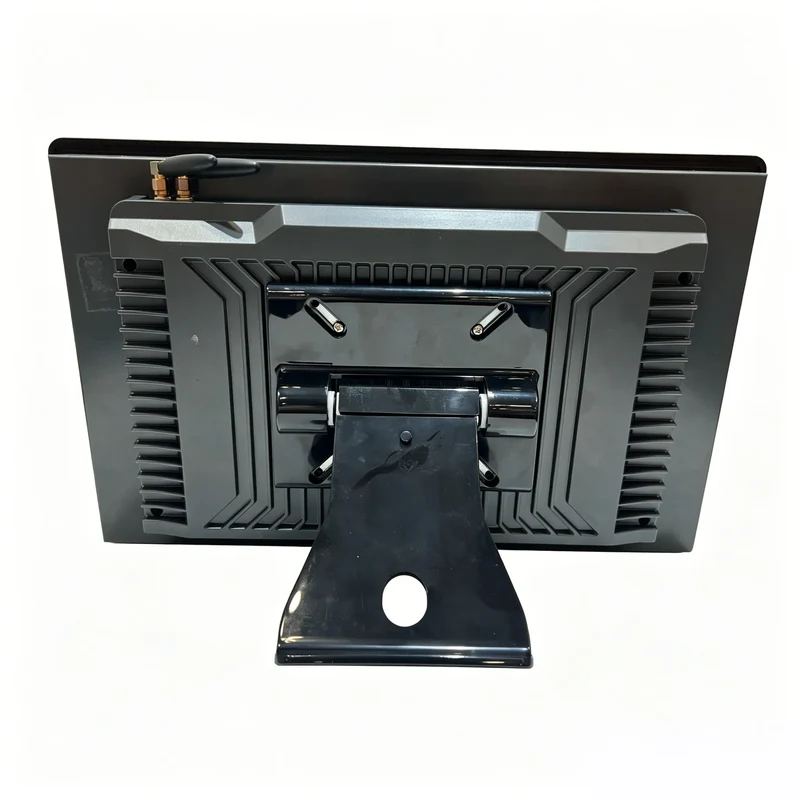

| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 3.46kg | / | ||||||||
| Gross weight | 4.76kg | / | |||||||||
| Product dimensions | 412*261*64mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 474*136*322mm（L*W*H） | / | |||||||||
| Carton Dimension | 703*495*342（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | / | Customizable | ||||||||
| POE | / | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
