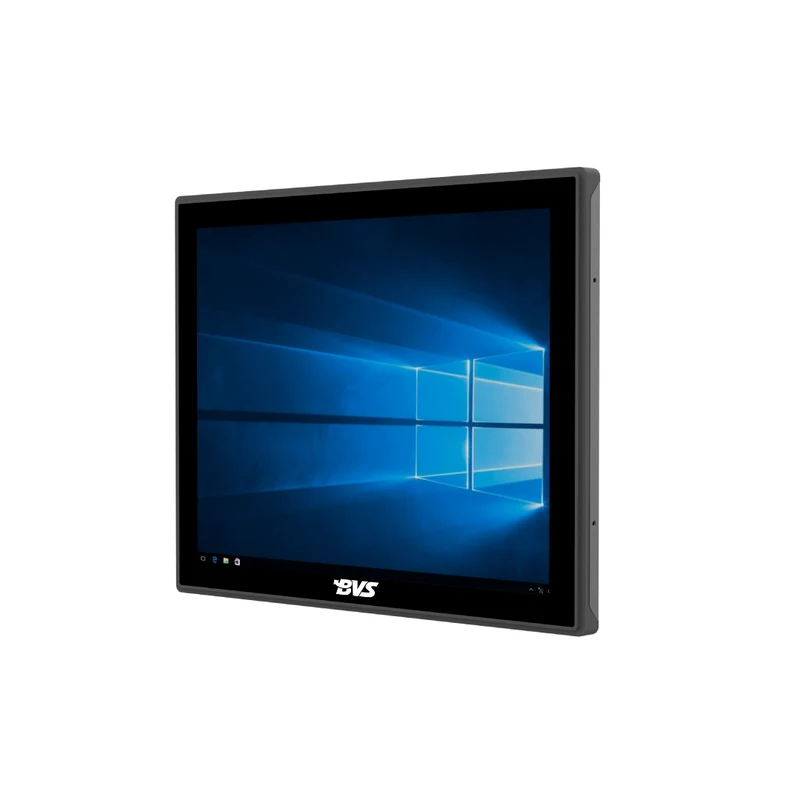

BVS‑QG‑170NL 17 Inch Square‑Format Seamless Flush Embedded Industrial Touch PC, Flat Front HMI Panel, 6th Gen Intel Core i5, Windows Linux
Descrizione
Overview &Key Features
【Model】BVS-QG170NL
【Item】
BVS‑QG‑170NL is a classic square‑format flush‑embedded industrial touch panel PC with a fully flat seamless ABS front plate. The 17‑inch traditional industrial screen delivers a mature display layout for process control and visual inspection systems. After seamless embedding, the entire front surface stays flush with the cabinet for easy decontamination and dust prevention in high‑spec industrial workshops. Powered by the 6th Gen Intel Core i5 CPU, it supports Windows and Linux to serve as a premium upgrade for legacy square‑screen industrial control systems.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-4200U (4th Gen) | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 1.6 GHz (Up to 2.6 GHz) | / | |||||||||
| RAM | 8GB | (4GB / 8GB / 16GB) | |||||||||
| SSD | 128GB | (64GB / 128GB / 256GB / 512GB) | |||||||||
| Operating system | Windows 10 Pro | Windows 7 / Windows 11 / Linux | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1280*1024 | / | |||||||||
| Viewing angle | Ultra-Wide / Full Viewing Angle | / | |||||||||
| Contrast ratio | 1000:1 | / | |||||||||
| Brightness | 250 cd/m2 | 300/500/1000 cd/m2 | |||||||||
| Screen scale | 5:04 | / | |||||||||
| Network | Wi-Fi | / | Single-band / Dual-band | ||||||||
| Ethernet | 1 x Gigabit Ethernet | / | |||||||||
| BT | / | Bluetooth 5.0 | |||||||||
| 4G LTE | / | Mobile / Unicom / Telecom | |||||||||
| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | COM * 4 (Expandable) | / | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| TF card slot | / | / | |||||||||
| LAN | 1 | Customizable2* | |||||||||
| SIM-4G | / | Customizable1* | |||||||||
| DC-IN | 1 | / | |||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A External Power Adapter | / | ||||||||
| Temperature | Working temperature | -10°C ~ 60°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 4.54kg | / | ||||||||
| Gross weight | 6.05kg | / | |||||||||
| Product dimensions | 394.82 × 328.22 × 56.80 mm | / | |||||||||
| Single Unit Package Dimension | 470 x 420 x 140 mm | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | Camera | / | Customizable | ||||||||
| POE | / | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
