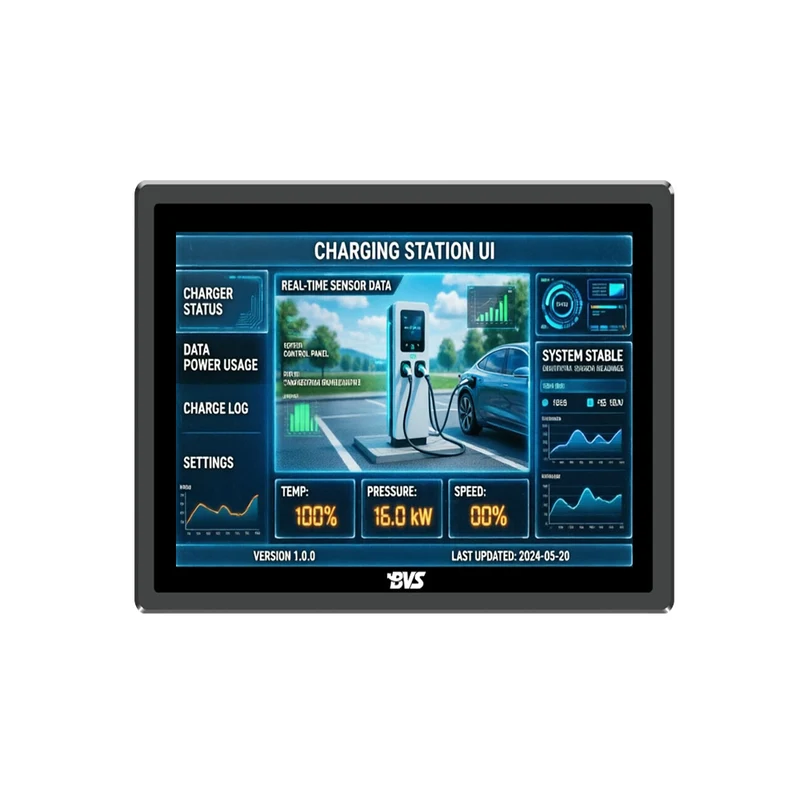

BVS‑QG‑170WL 17 Inch Square External Bezel Industrial Touch Panel PC, Front‑Mount Flange Design, 6th Gen Intel Core i5, Windows Linux Retrofit Workstation
Descrizione
Overview &Key Features
【Model】BVS-QG170WL
【Item】
BVS‑QG‑170‑E retains the traditional 17‑inch square industrial screen with a prominent external front mounting bezel. It is a direct drop‑in replacement solution for outdated 17‑inch industrial PCs on existing production lines. The pre‑drilled flange allows fast front‑screw assembly without cabinet rework. Running on the 6th‑generation Intel Core i5 processor with Windows and Linux support, it perfectly inherits original industrial software workflows for factory renovation projects.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5-4200U (4th Gen) | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 1.6 GHz (Up to 2.6 GHz) | / | |||||||||
| RAM | 8GB | (4GB / 8GB / 16GB) | |||||||||
| SSD | 128GB | (64GB / 128GB / 256GB / 512GB) | |||||||||
| Operating system | Windows 10 Pro | Windows 7 / Windows 11 / Linux | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1280*1024 | / | |||||||||
| Viewing angle | 85/85/80/80 (Typ.) (CR≥10) Wide Viewing Angle | / | |||||||||
| Contrast ratio | 1000:1 | / | |||||||||
| Brightness | 250 cd/m2 | 300/500/1000 cd/m2 | |||||||||
| Screen scale | 5:04 | / | |||||||||
| Network | Wi-Fi | / | Single-band / Dual-band | ||||||||
| Ethernet | 1 x Gigabit Ethernet | / | |||||||||
| BT | / | Bluetooth 5.0 | |||||||||
| 4G LTE | / | Mobile / Unicom / Telecom | |||||||||
| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | COM * 4 (Expandable) | / | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| TF card slot | / | / | |||||||||
| LAN | 1 | Customizable2* | |||||||||
| SIM-4G | / | Customizable1* | |||||||||
| DC-IN | 1 | / | |||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A External Power Adapter | / | ||||||||
| Temperature | Working temperature | -10°C ~ 60°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 4.74kg | / | ||||||||
| Gross weight | 6.25kg | / | |||||||||
| Product dimensions | 412 × 331 × 64 mm | / | |||||||||
| Single Unit Package Dimension | 470 x 420 x 140 mm | / | |||||||||
| Carton Dimension | / | / | |||||||||
| Other functions | Camera | / | Customizable | ||||||||
| POE | / | Customizable | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
